Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: A5356
Category: Cylindrical Roller Bearings
1

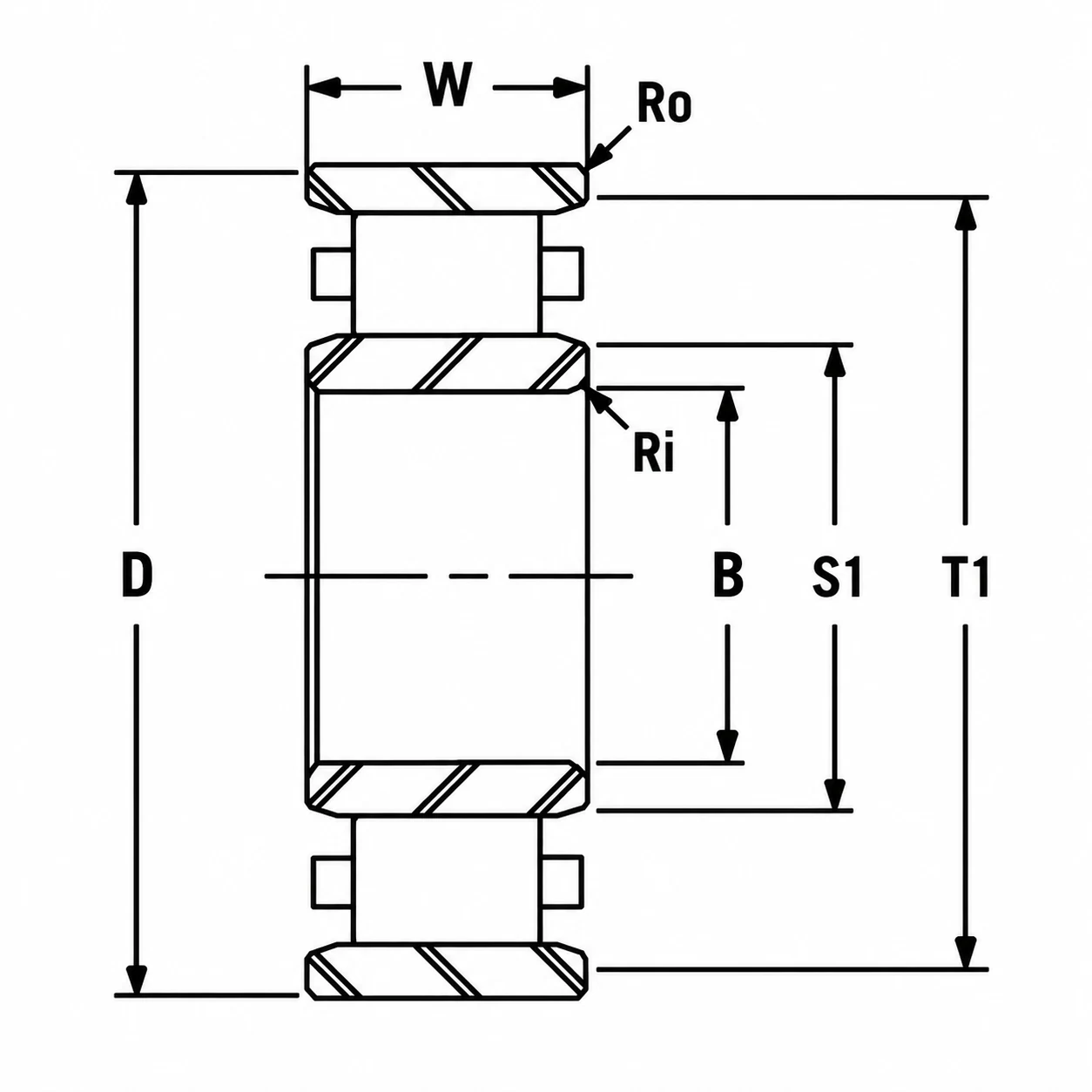

Weight and Dimensions
Bore (B): 280 mm 11.0236 in
Outer Diameter (D): 580 mm 22.8346 in
Width (W): 215.9 mm 8.5 in
Inner Race O.D. A: 358.78 mm 14.125 in
Weight: 150 kg 331 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 2135 KN 480000 lbs
Static Capacity (Co) : 2980 KN 670000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing A5356 cylindrical roller bearing consists of a ribless inner ring, ribless outer ring, and cylindrical roller assembly that is separable from both rings. Its cylindrical roller design provides high radial load capacity and rigidity, while the ribless ring configuration allows axial displacement to accommodate shaft expansion during operation. The fully separable construction facilitates mounting, inspection, and maintenance. It is suitable for industrial gearboxes, electric motors, conveyors, material handling equipment, steel mill machinery, paper machinery, and other industrial equipment requiring reliable radial support and axial displacement capability.
