AD232H
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: AD232H
Category: Cylindrical Roller Bearings
1

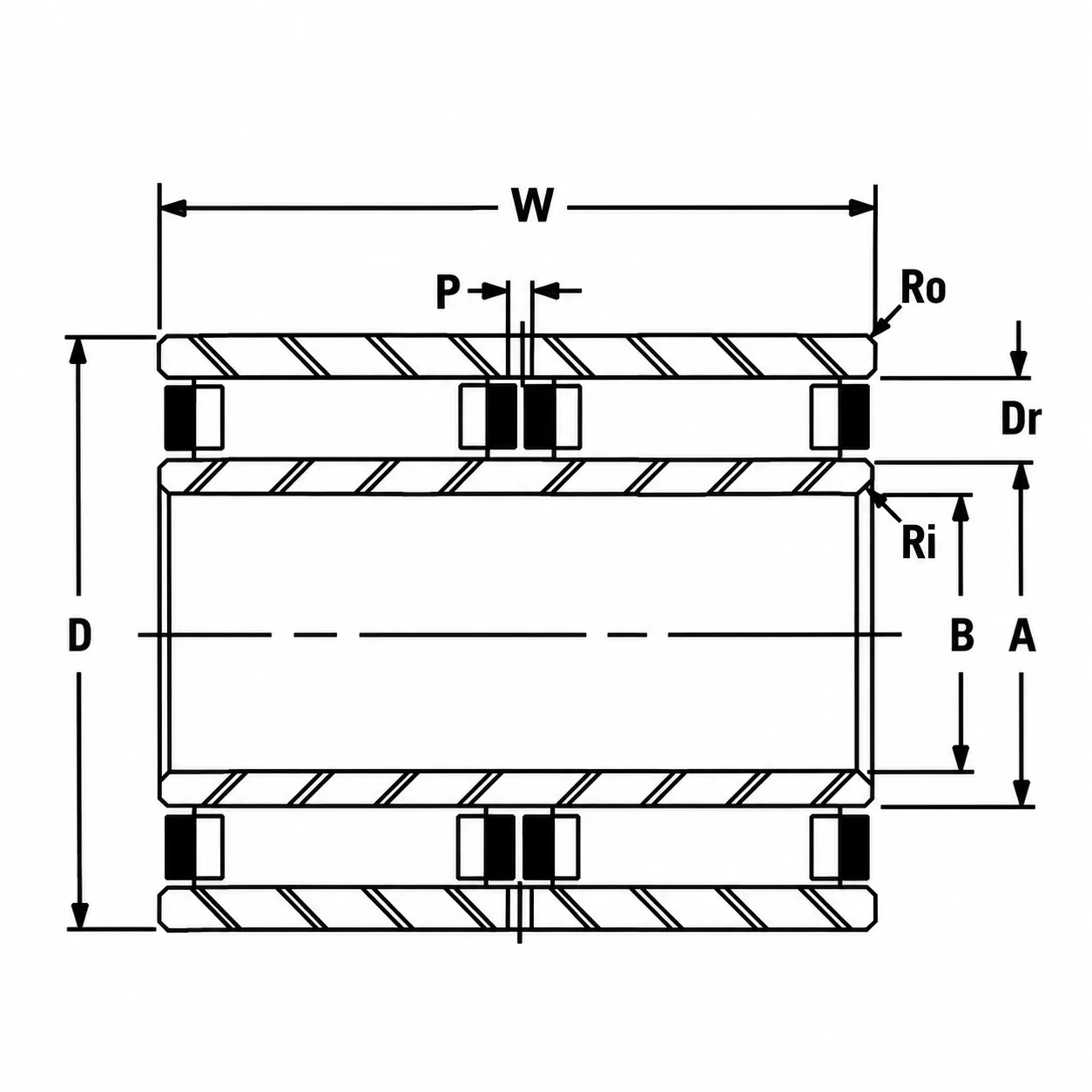

Weight and Dimensions
Bore (B): 160 mm 6.2992 in
Outer Diameter (D): 290 mm 11.4173 in
Width (W): 247.65 mm 9.7500 in
Inner Race O.D. A: 193.68 mm 7.6250 in
Weight: 80 kg 177 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1668 KN 375000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing AD232H journal roller bearing consists of an inner ring, outer ring, and cylindrical roller assembly in a separable construction. Its cylindrical roller design provides high radial load capacity and rigidity, ensuring stable shaft support under moderate to heavy radial loads. The separable construction facilitates installation, inspection, and maintenance while providing reliable performance in demanding operating conditions. It is suitable for corrugating machinery, line shafts, table rolls, forging equipment, steel mill machinery, and other heavy-duty industrial equipment requiring reliable radial support.
