AM316H
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: AM316H
Category: Cylindrical Roller Bearings
1

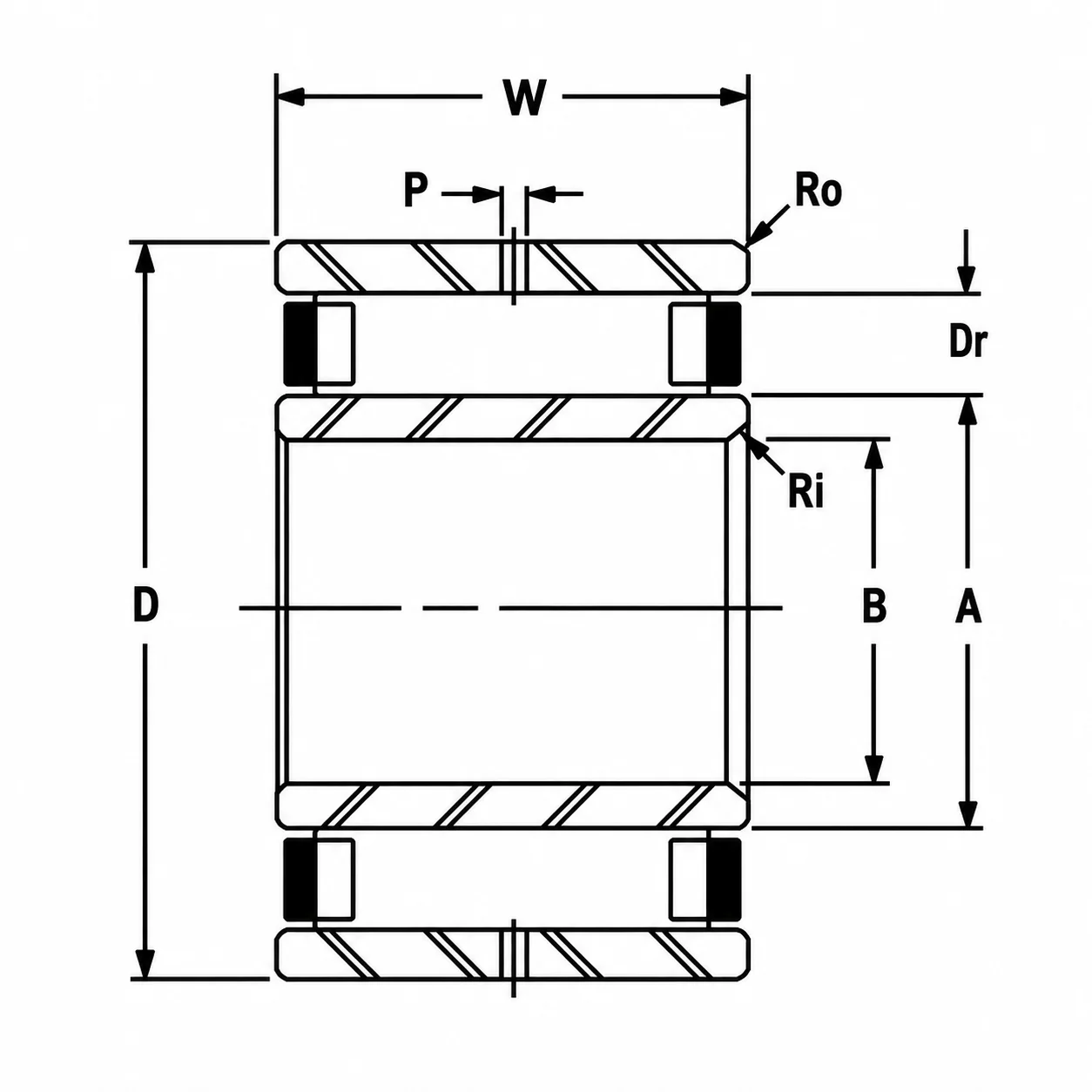

Weight and Dimensions
Bore (B): 80 mm 3.1496 in
Outer Diameter (D): 170 mm 6.6929 in
Width (W): 68.26 mm 2.6875 in
Inner Race O.D. A: 101.6 mm 4.0000 in
Weight: 8 kg 18.6 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 302 KN 68000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing AM316H journal roller bearing consists of an inner ring, outer ring, and cylindrical roller assembly in a separable construction. Its cylindrical roller design provides high radial load capacity and rigidity, ensuring stable shaft support under moderate to heavy radial loads. The separable construction facilitates installation, inspection, and maintenance while providing reliable performance in demanding operating conditions. It is suitable for corrugating machinery, line shafts, table rolls, forging equipment, steel mill machinery, and other heavy-duty industrial equipment requiring reliable radial support.
