ATS240H
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: ATS240H
Reference Number: TS99240
Inner Race Number: A30428H
Category: Cylindrical Roller Bearings
1

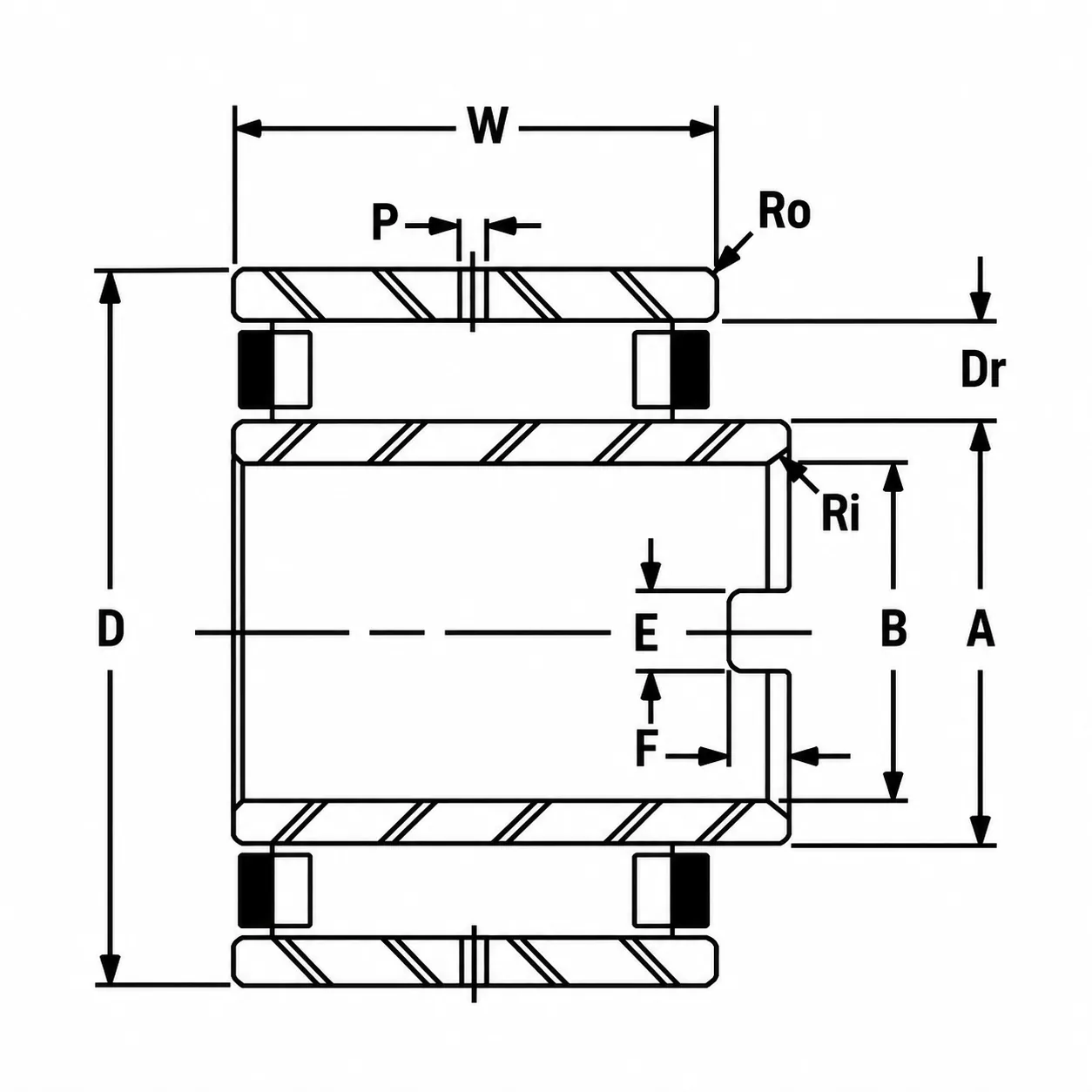

Weight and Dimensions
Bore (B): 190.500 mm 7.5000 in
Outer Diameter (D): 339.999 mm 13.3858 in
Outer Width (Wo): 120.650 mm 4.7500 in
Inner Width (Wi): 190.500 mm 7.5000 in
Inner Race O.D. A: 234.950 mm 9.2500 in
Weight: 57.00 kg 126.00 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1134 KN 255000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing ATS240H journal roller bearing consists of a removable inner ring, outer ring, and cylindrical roller assembly in a separable construction. Its robust cylindrical roller design provides high radial load capacity and rigidity, ensuring stable shaft support under moderate to heavy radial loads. The bearing incorporates an oil hole for effective lubrication and notches for specific mounting requirements, while the separable construction facilitates installation, inspection, and maintenance.
The bearing ATS240H is suitable for corrugating machinery, line shafts, table rolls, forging equipment, steel mill machinery, and other heavy-duty industrial equipment requiring high radial load capacity, reliable shaft support, and durable operation.
