ATX228H
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: ATX228H
Reference Number: TX99228
Inner Race Number: A30097H
Category: Cylindrical Roller Bearings
1

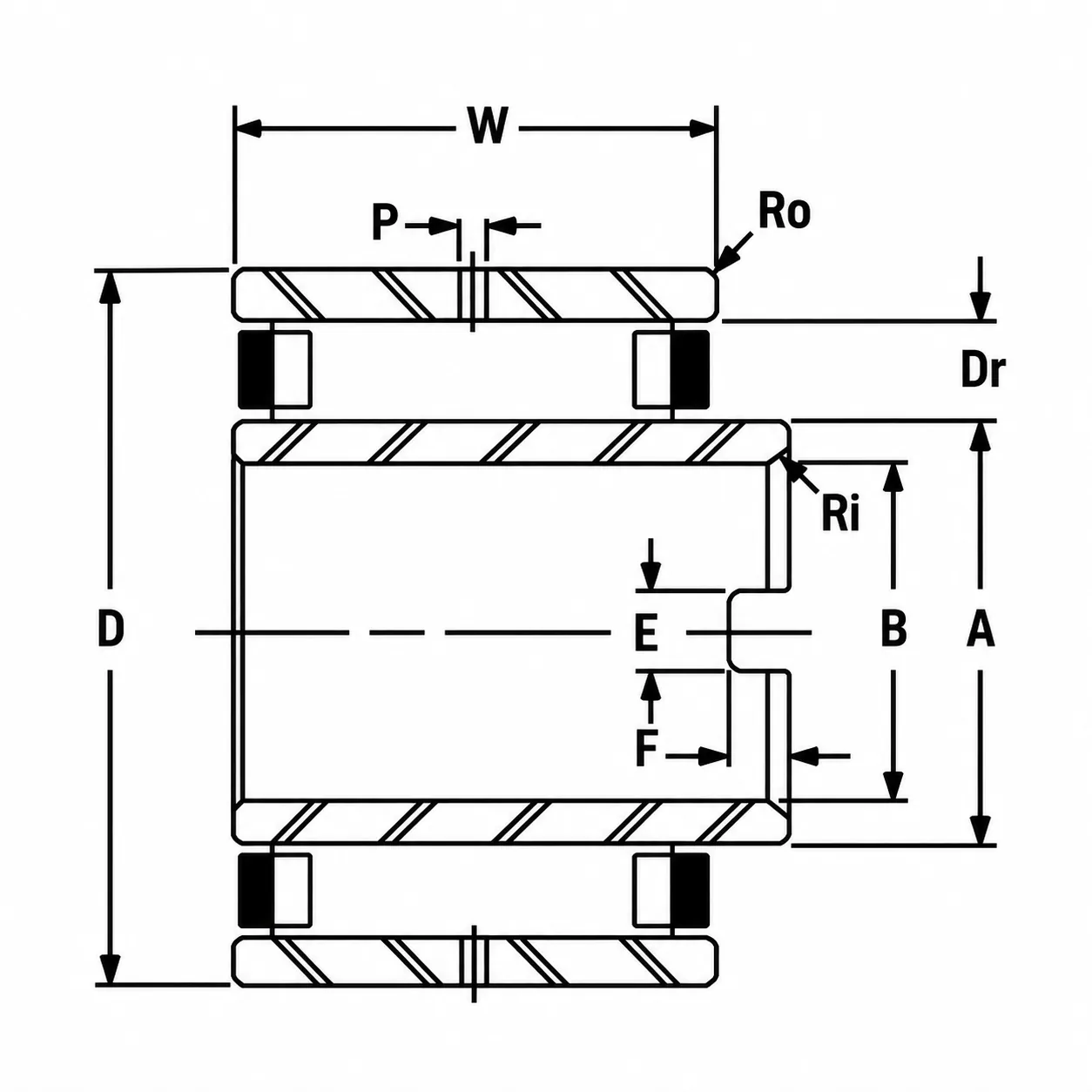

Weight and Dimensions
Bore (B): 139.700 mm 5.5000 in
Outer Diameter (D): 250.000 mm 9.8425 in
Outer Width (Wo): 82.550 mm 3.2500 in
Inner Width (Wi): 130.175 mm 5.1250 in
Inner Race O.D. A: 168.275 mm 6.6250 in
Weight: 21.50 kg 47.50 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 587 KN 132000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing ATX228H journal roller bearing consists of a removable inner ring, outer ring, and cylindrical roller assembly in a separable construction. Its robust cylindrical roller design provides high radial load capacity and rigidity, ensuring stable shaft support under moderate to heavy radial loads. The bearing incorporates an oil hole for effective lubrication and notches for specific mounting requirements, while the separable construction facilitates installation, inspection, and maintenance.
The bearing ATX228H is suitable for corrugating machinery, line shafts, table rolls, forging equipment, steel mill machinery, and other heavy-duty industrial equipment requiring high radial load capacity, reliable shaft support, and durable operation.
