F-2342-A
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: F-2342-A
Category: Tapered Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 457.200 mm 18.0000 in
Outer (D): 762.000 mm 30.0000 in
Width (T): 139.700 mm 5.5000 in
Weight: 262.00 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 2870 KN
Static Radial Load Rating (Ca0): 43300 KN
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description

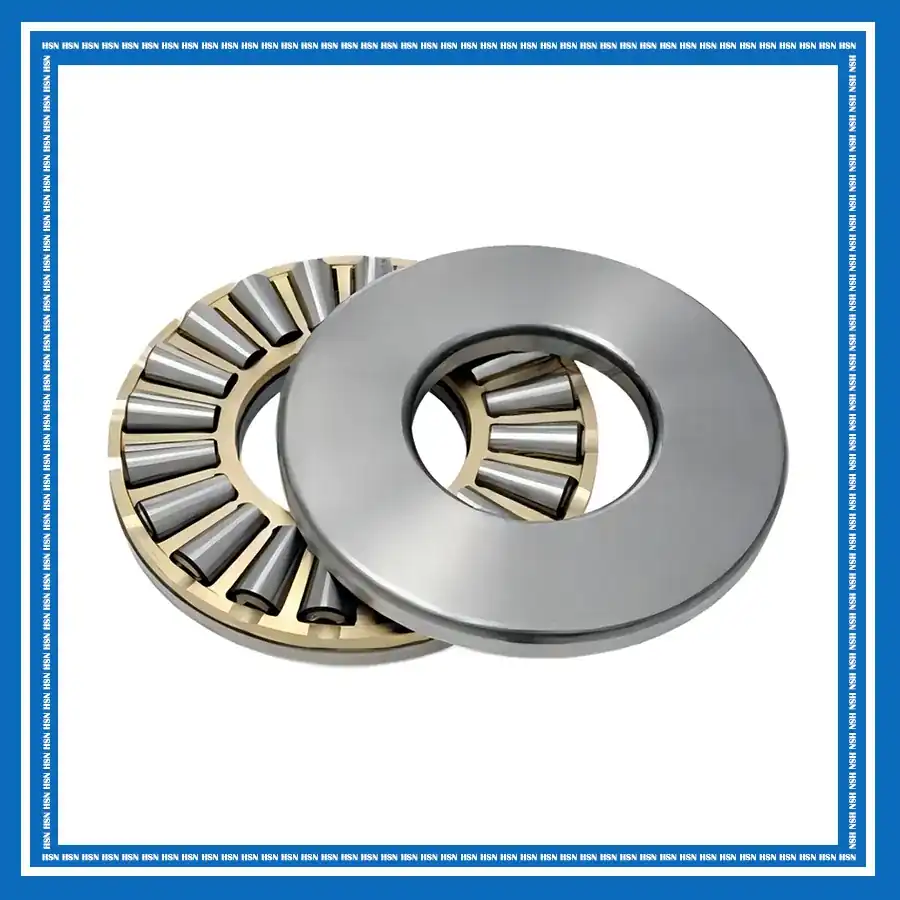

The F-2342-A Timken TTHDFL tapered roller thrust bearing consists of one tapered raceway ring, one flat ring, tapered rollers, and a cage. Most sizes use a pin-type cage that allows closer roller spacing for higher load capacity, while smaller sizes use a brass cage. Combining the advantages of tapered and cylindrical roller thrust bearings, this design provides high axial load capacity within a compact space. It is mainly used in rolling mill screwdown applications requiring reliable support under heavy axial loads.
