HCS329
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: HCS329
Category: Cylindrical Roller Bearings
1

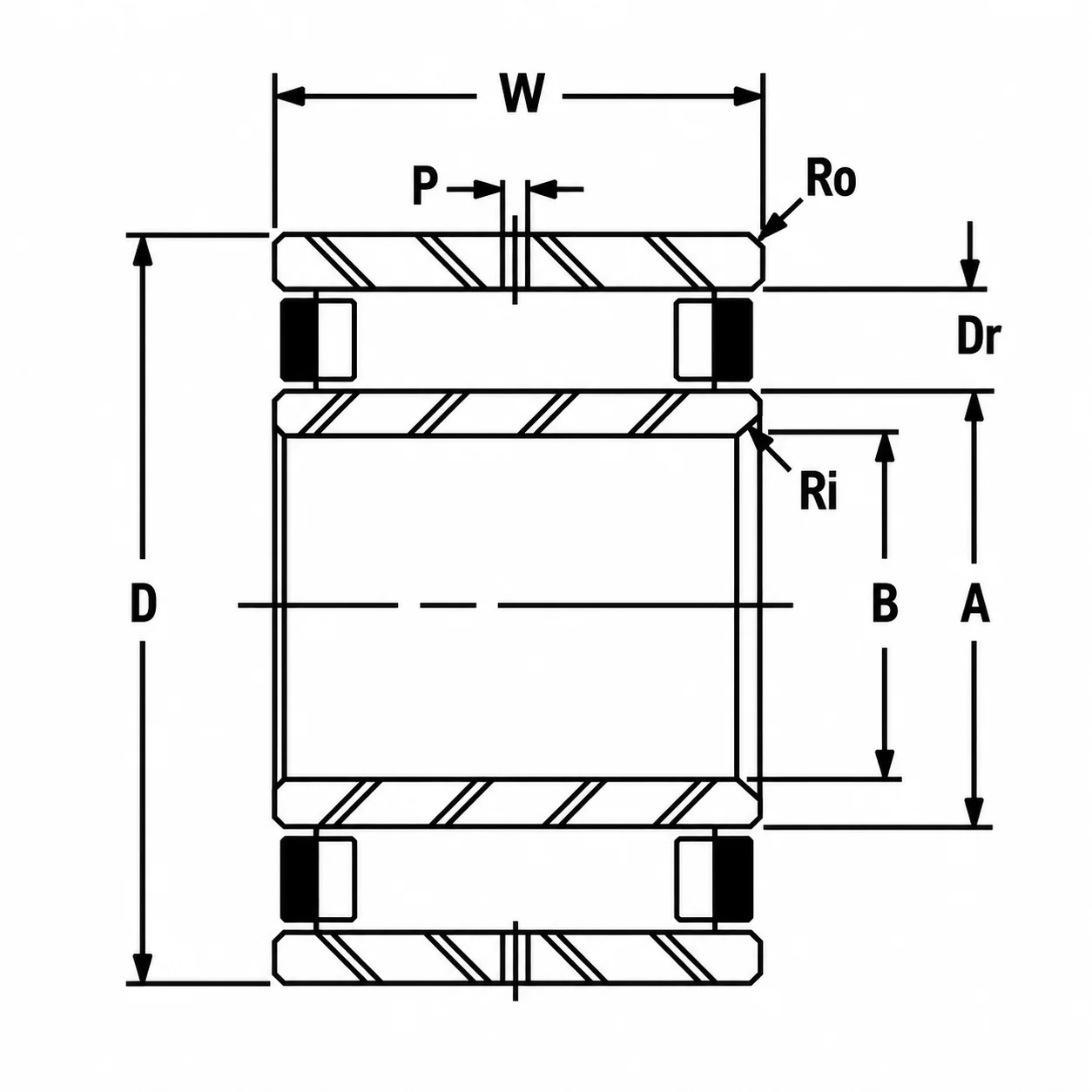

Weight and Dimensions
Bore (B): 177.800 mm 7.0000 in
Outer Diameter (D): 279.400 mm 11.0000 in
Width (W): 152.400 mm 6.0000 in
Inner Race O.D. A: 203.200 mm 8.0000 in
Weight: 38.00 kg 84.00 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1032 KN 232000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing HCS329 journal roller bearing consists of an inner ring, outer ring, and cylindrical roller assembly in a separable construction. Its robust cylindrical roller design provides high radial load capacity and rigidity, ensuring stable shaft support under moderate to heavy radial loads. The bearing incorporates an oil hole to support effective lubrication, while the separable construction facilitates installation, inspection, and maintenance. It is suitable for corrugating machinery, line shafts, table rolls, forging equipment, steel mill machinery, and other heavy-duty industrial equipment requiring reliable radial support and durable operation.
