HCS36
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: HCS36
Reference Number: 710036
Category: Cylindrical Roller Bearings
1

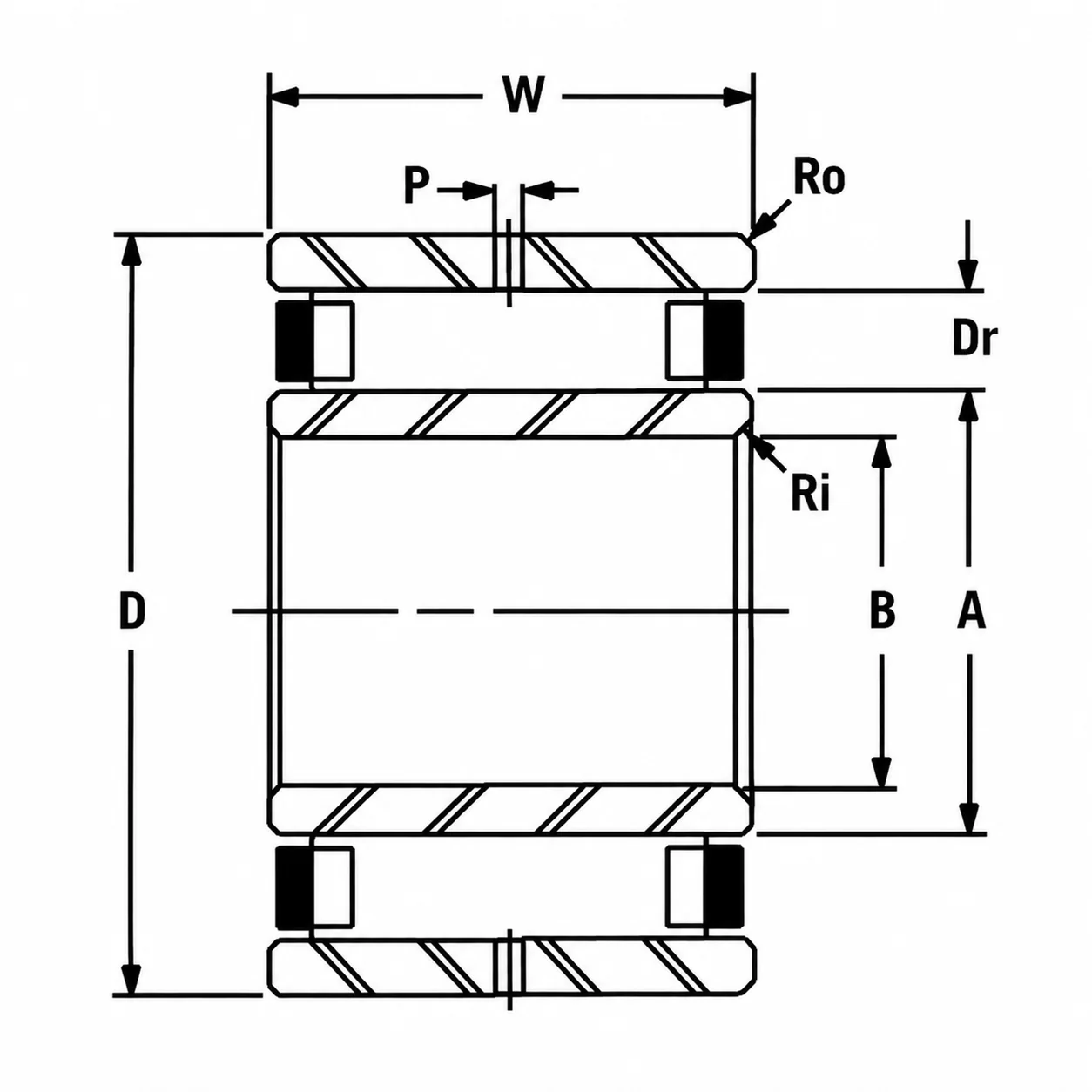

Weight and Dimensions
Bore (B): 219.075 mm 8.625 in
Outer Diameter (D): 339.725 mm 13.375 in
Width (W): 114.3 mm 4.5 in
Inner Race O.D. A: 254 mm 10 in
Weight: 43 kg 94.5 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 907 KN 204000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing HCS36 precision end ring bearing consists of an inner race, cylindrical roller assembly, and precision end rings that guide and retain the rollers. Its robust roller construction provides high radial load capacity and rigidity, while the precision end ring design helps maintain stable roller guidance and reliable shaft support under heavy radial loads. An integrated oil hole supports effective lubrication for dependable operation and maintenance. It is suitable for steel mill equipment, table rolls, line shafts, forging machinery, heavy industrial drives, and other demanding equipment requiring high radial load capacity, rigidity, and durable shaft support.
