JK0S080-A
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: JK0S080-A
Category: Tapered Roller Bearings
1

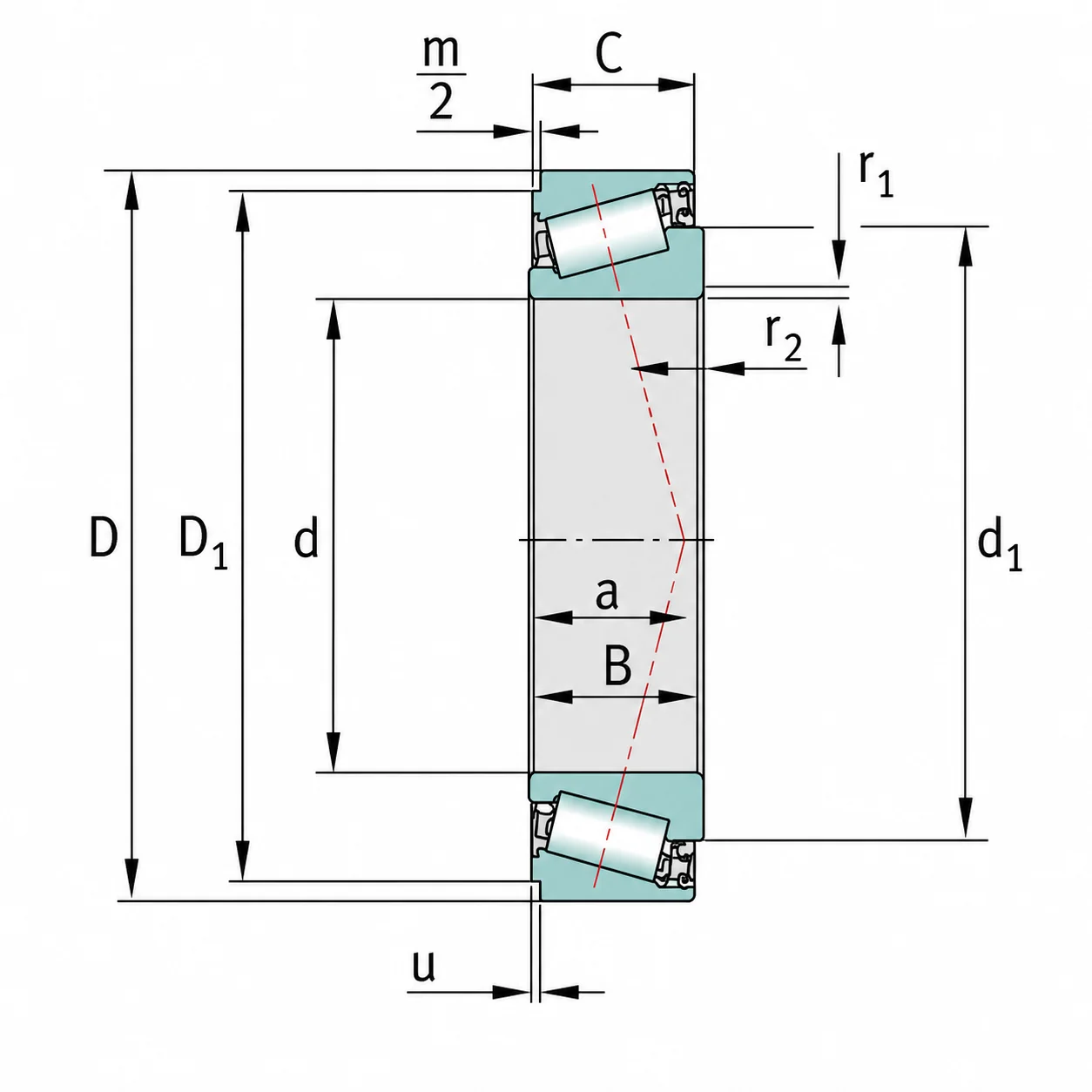

Weight and Dimensions
Bore (d): 80 mm
Outer (D): 125 mm
Width, Inner Ring (B): 30 mm
Width, Outer Ring (C): 29.5 mm
Weight: 1.32 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 137000 N
Basic Static Load Rating, Radial (C0r): 211000 N
Fatigue Load Limit, Radial (Cur): 26000 N
Limiting Speed (nG): 2550 r/min
Load Carrying Capacity (FBR): 40200 N
Max.Axial Assembly Clamping Force: 27400 N
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Tapered Roller Bearings Guide
Product Description
The JK0S080-A FAG integral tapered roller bearing consists of an inner ring, outer ring, tapered rollers, a cage, and an integral seal on one side. Its non-separable construction keeps the bearing components together as one unit, simplifying mounting and handling. The tapered contact geometry accommodates radial loads and axial loads in one direction, while the integrated seal helps retain lubricant and protect the rolling contact area from contamination.
The JK0S080-A bearing is suitable for automotive applications, agricultural machinery, construction machinery, material handling, and industrial drive systems. Its compact integral construction supports reliable operation where combined loads occur, while the one-sided sealing arrangement provides additional protection in applications exposed to dust, dirt, and other contaminants.
