JM716649 / JM716610-B
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: JM716649 / JM716610-B
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 85 mm 3.3465 in
Outer (D): 130 mm 5.1181 in
Width (T1): 11.557 mm 0.4550 in
Width (B): 29 mm 1.6250 in
Width (C): 24 mm 0.9449 in
Weight: 1.39 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 161000 N
Dynamic Radial Load Rating – 90M Revs (C90) : 41800 N
Dynamic Axial Rating – 90M Revs (Ca90): 31800 N
Static Radial Load Rating (C0): 245000 N
e Factor: 0.44
K Factor: 1.31
Y Factor: 1.35
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product description

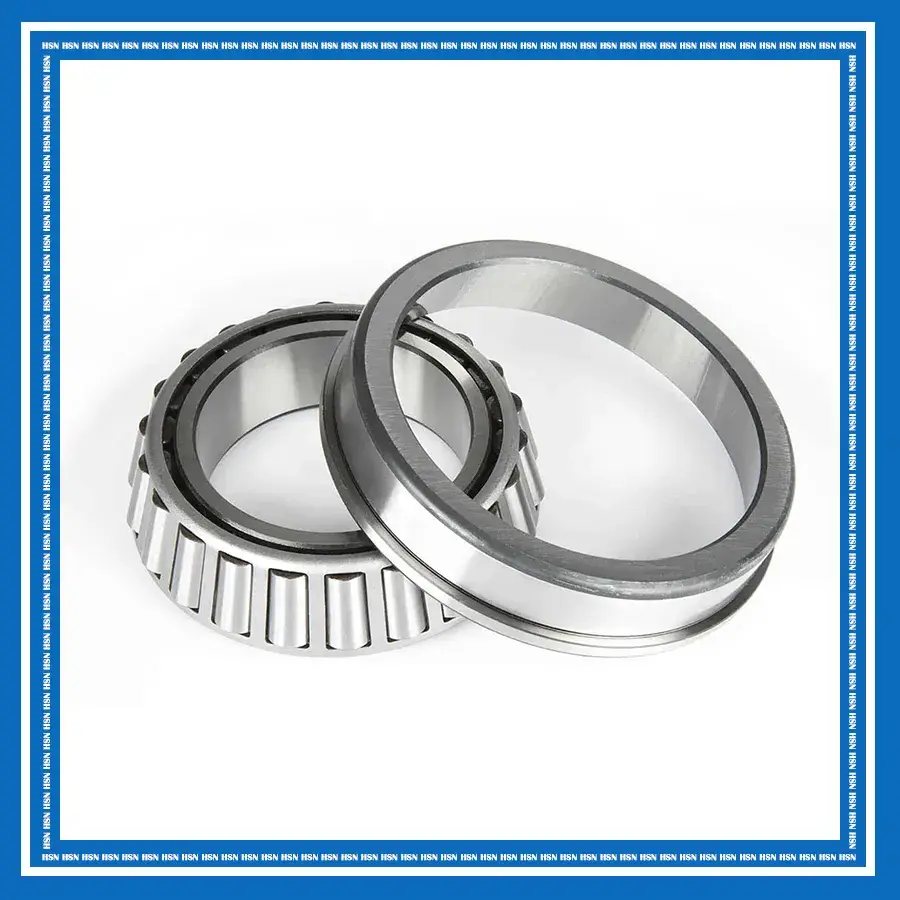

The JM716649 / JM716610-B Timken TSF tapered roller bearing features a single-row tapered roller bearing design with a flanged outer ring. The flange provides accurate axial positioning of the outer ring within the housing, while through-bored housing designs help achieve precise alignment of the bearing seats. This configuration simplifies installation and improves mounting stability in applications requiring reliable positioning and consistent operating performance.
The JM716649 / JM716610-B TSF bearing is widely used in industrial equipment, gearboxes, agricultural machinery, construction machinery, and other applications where accurate bearing location, reliable load support, and long service life are required.
