K7×10×8-TV

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: K7×10×8-TV

Category: Needle Roller Bearings

1

Weight and Dimensions

Inner Diameter (Fw): 7 mm

Outside Diameter (Ew): 10 mm

Width (Bc): 8 mm

Weight: 0.9 g

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 2850 N

Basic Static Load Rating, Radial (C_0r): 2650 N

Fatigue Load Limit, Radial (C_ur): 330 N

Limiting Speed (n_G): 34500 r/min

Reference Speed (n_G): 36000 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Needle Roller Bearings Guide

Product Description

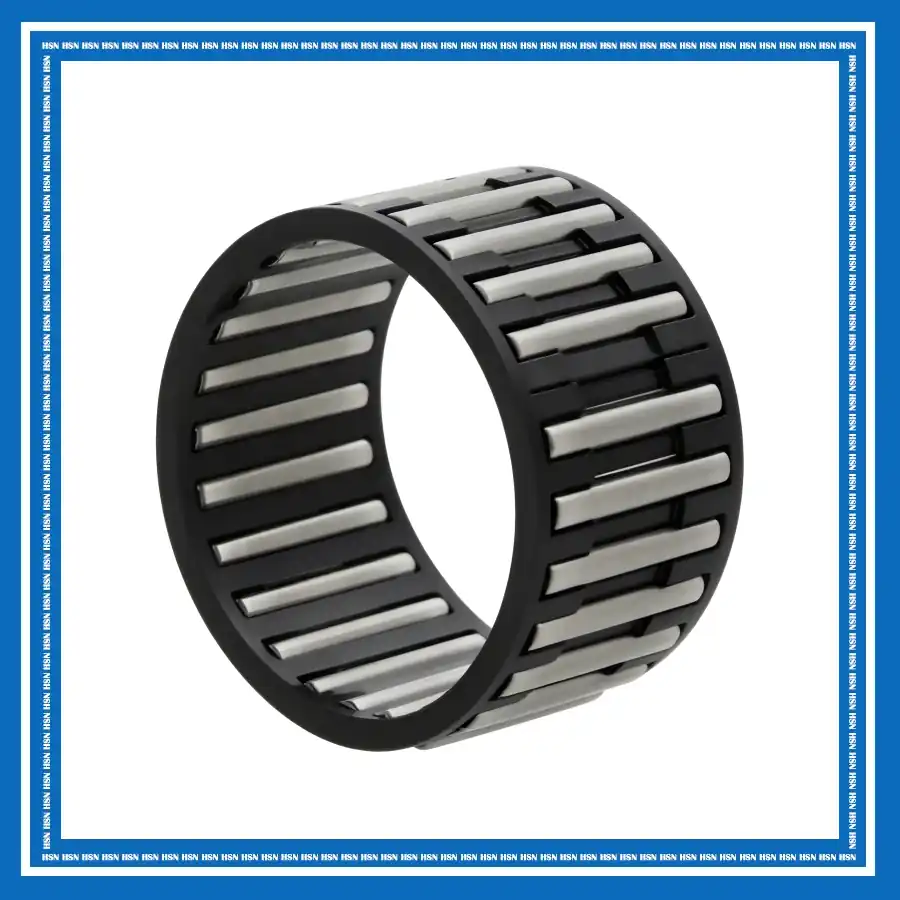

The K7×10×8-TV FAG needle roller and cage assembly consists of needle rollers and a plastic cage, without separate inner or outer rings. The needle rollers run directly on suitable shaft and housing raceways, resulting in a very small radial cross-section and high radial load capacity. The TV plastic cage guides and separates the needle rollers, helping reduce friction and roller skew while supporting high-speed operation. Its compact design also saves installation space and enables lightweight bearing arrangements.

The K7×10×8-TV bearing is suitable for automotive, industrial transmissions, machine tools, agricultural machinery, construction machinery, material handling, and general mechanical engineering. Its compact radial dimensions make it especially suitable where installation space is limited. Meanwhile, its combination of high radial load capacity, low friction, and high-speed capability supports efficient operation in compact mechanical systems.
