LM278849 / LM278810CD
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: LM278849 / LM278810CD
Category: Tapered Roller Bearings
1

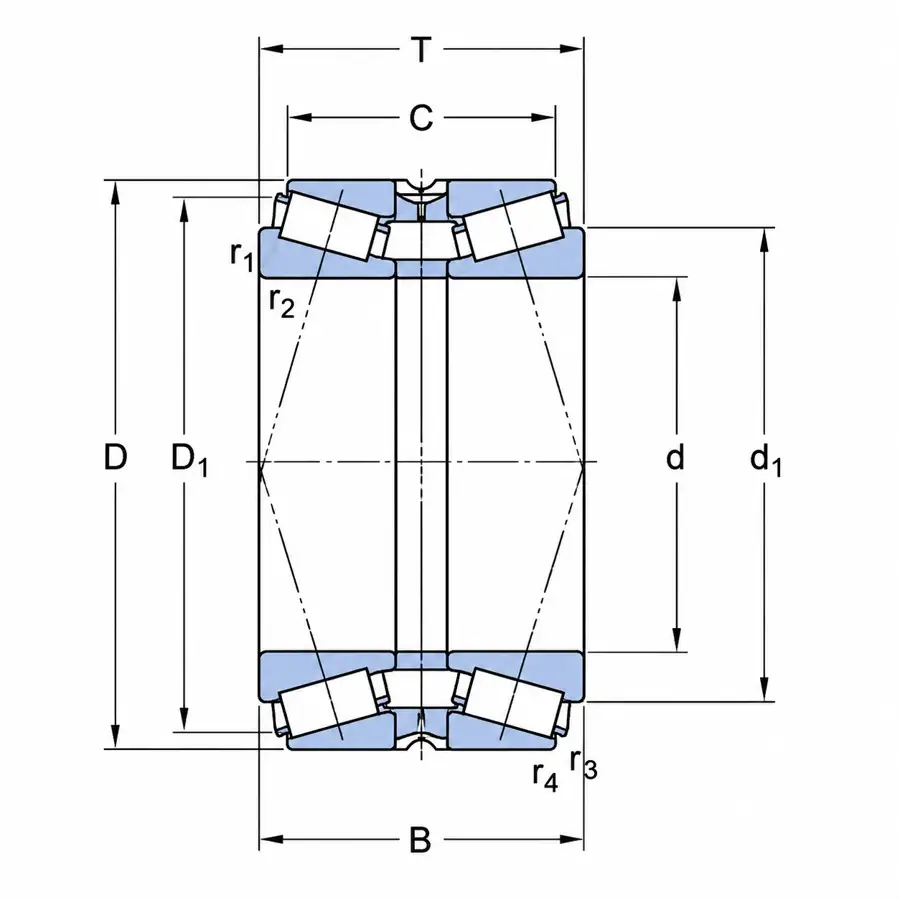

Weight and Dimensions
Bore (d): 585.788 mm 23.0625 in
Outer (D): 771.525 mm 30.3750 in
Width (T): 269.047 mm 10.5924 in
Width (C): 212.725 mm 8.3750 in
Weight: 323.60 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1) : 5730000 N
Dynamic Radial Load Rating – 90M Revs (C90) : 853000 N
Dynamic Radial Load Rating 2-Row – 90M Revs (C90-2row): 1490000 N
Dynamic Axial Rating – 90M Revs (Ca90): 486000 N
e Factor: 0.33
K Factor: 1.76
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product Description

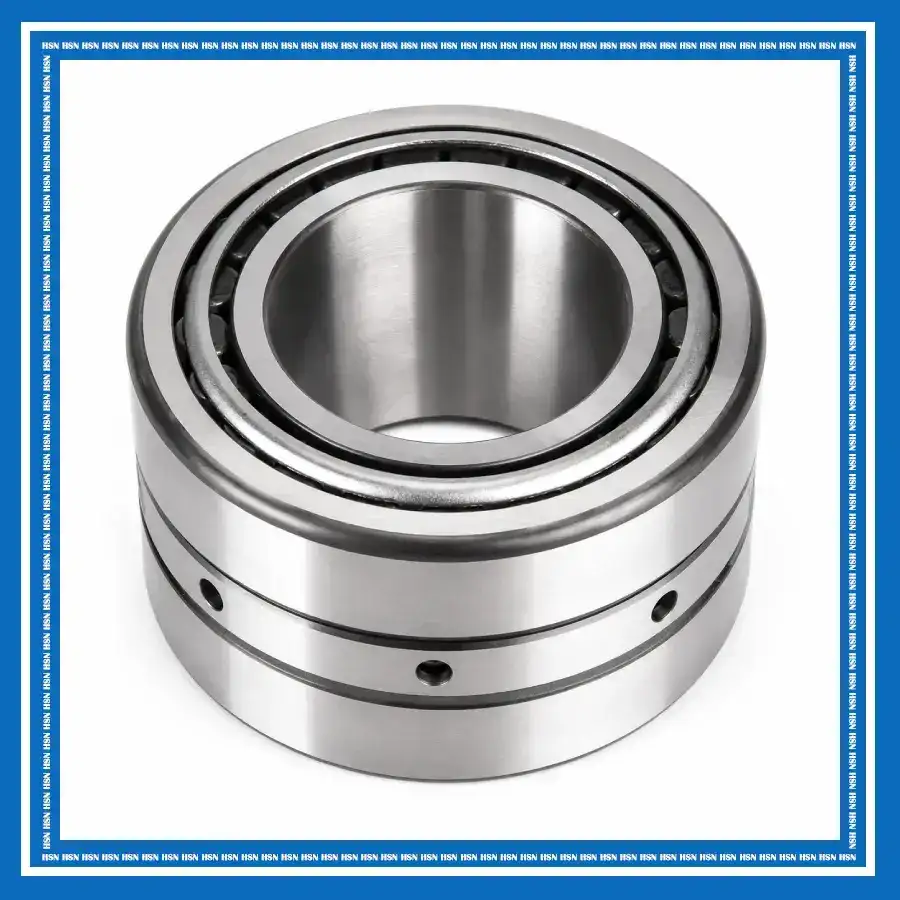

The LM278849 / LM278810CD TDO tapered roller bearing features a double outer ring design with a single inner ring and two rows of tapered rollers. This configuration provides high radial load capacity, bidirectional axial load support, and excellent rigidity for demanding operating conditions. The double outer ring structure improves roller guidance and load distribution, helping maintain stable operation under heavy loads, shock conditions, and continuous running requirements.
The LM278849 / LM278810CD TDO bearing is widely used in industrial gearboxes, heavy-duty transmission systems, rolling mills, mining equipment, and construction machinery where reliable load support, accurate positioning, and long service life are required.
