LM637349NW / LM637310D
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: LM637349NW / LM637310D
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 184.150 mm 7.2500 in
Outer (D): 242.888 mm 9.5625 in
Width (T): 95.250 mm 3.7500 in
Width (C): 69.850 mm 2.7500 in
Weight: 10.98 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1) : 541000 N
Dynamic Radial Load Rating – 90M Revs (C90) : 80600 N
Dynamic Radial Load Rating 2-Row – 90M Revs (C90-2row): 140000 N
Dynamic Axial Rating – 90M Revs (Ca90): 57800 N
e Factor: 0.42
K Factor: 1.39
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product Description

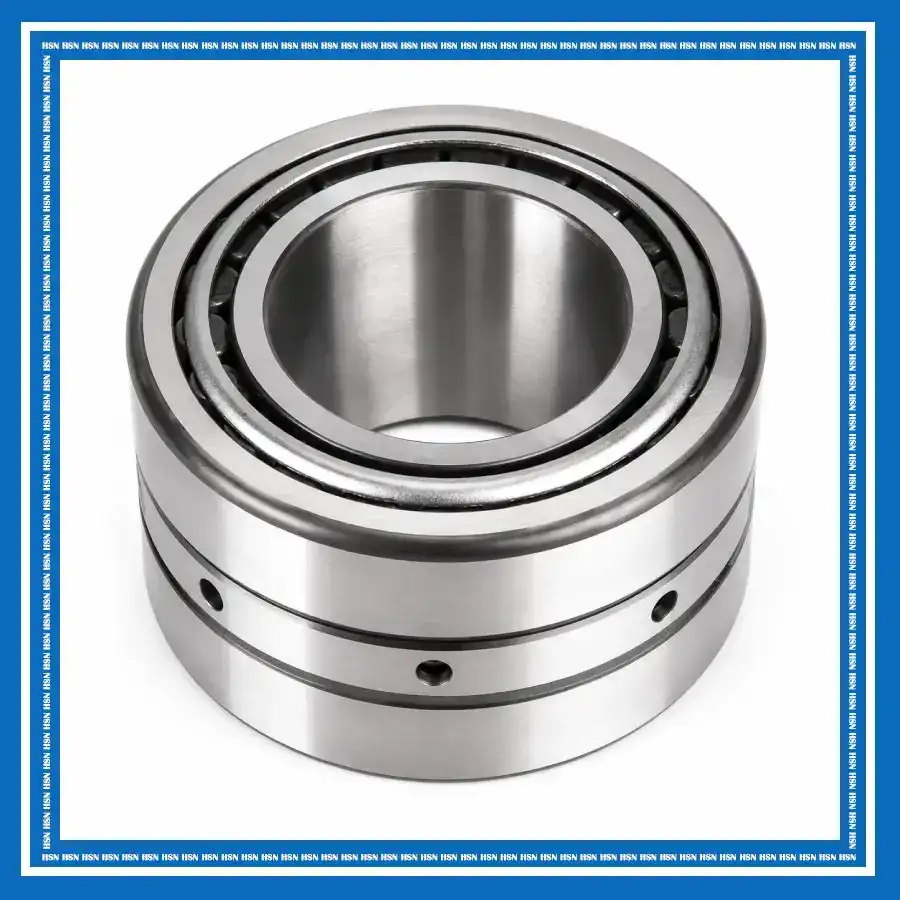

The LM637349NW / LM637310D TNASWE tapered roller bearing features a double-row tapered roller design with two single inner rings and a double outer ring. The extended inner ring face design provides direct inner-ring contact, eliminating the need for a separate cone spacer and creating a compact bearing configuration. The inner ring lubrication slots improve lubricant flow, while the built-in clearance design ensures stable load distribution, reliable performance, and consistent operation for fixed and floating bearing applications.
The LM637349NW / LM637310D TNASWE bearing is widely used in industrial equipment, heavy-duty gearboxes, construction machinery, mining equipment, and other applications where reliable load support, easy installation, and long service life are required.
