NA4909-RSR-XL

Specifications

Availability: 100 PCS

Brand: HSN/ INA/ OEM

Bearing Number: NA4909-RSR-XL

Category: Needle Roller Bearings

1

Weight and Dimensions

Under Roller Diameter (Fw): 45 mm

Outside Diameter (D): 68 mm

Width, Outer Ring (C): 23 mm

Weight: 290 g

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 43000 N

Basic Static Load Rating, Radial (C_0r): 59000 N

Fatigue Load Limit, Radial (C_ur): 9700 N

Limiting Speed (n_G): 5200 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

INA Needle Roller Bearings Guide

Product Description

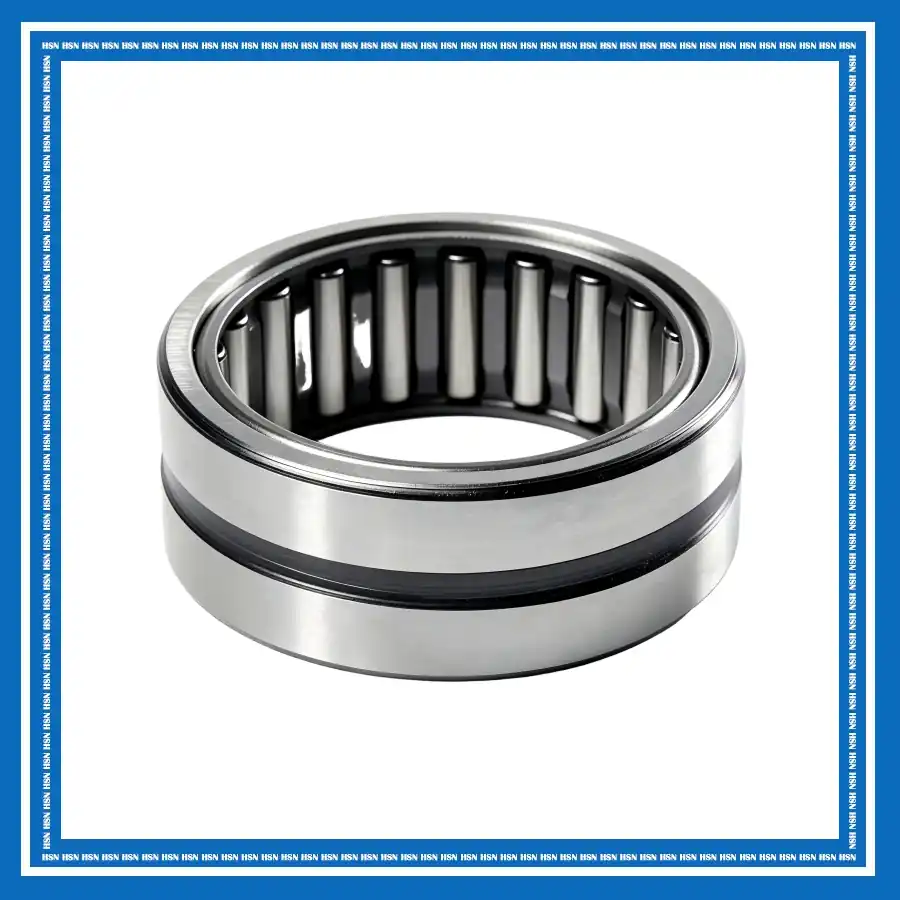

The NA4909-RSR-XL INA machined needle roller bearing consists of a machined outer ring with two ribs, an extended inner ring, needle rollers, and a cage. Its single-row design combines a compact radial cross-section with high radial load capacity and rigidity. The inner ring provides a precision raceway, making the bearing suitable where the shaft cannot serve directly as a rolling bearing raceway. In addition, X-life improves load carrying capacity and extends operating life.

The NA4909-RSR-XL features an RSR contact seal on one side, which helps retain lubricant and protect the rolling contact area against contamination. The bearing is suitable for industrial transmissions, automotive, agricultural machinery, machine tools, material handling, and general mechanical engineering. Its combination of compact dimensions, high radial load capacity, rigidity, sealing performance, and long service life supports reliable operation in demanding mechanical systems.
