NAO17×30×13-XL

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: NAO17×30×13-XL

Category: Needle Roller Bearings

1

Weight and Dimensions

Bore Diameter (Fw): 17 mm

Outside Diameter (D): 30 mm

Width (B): 13 mm

Weight: 42 g

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 11800 N

Basic Static Load Rating, Radial (C_0r): 15900 N

Fatigue Load Limit, Radial (C_ur): 2550 N

Limiting Speed (n_G): 20400 r/min

Reference Speed (n_G): 11100 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Needle Roller Bearings Guide

Product Description

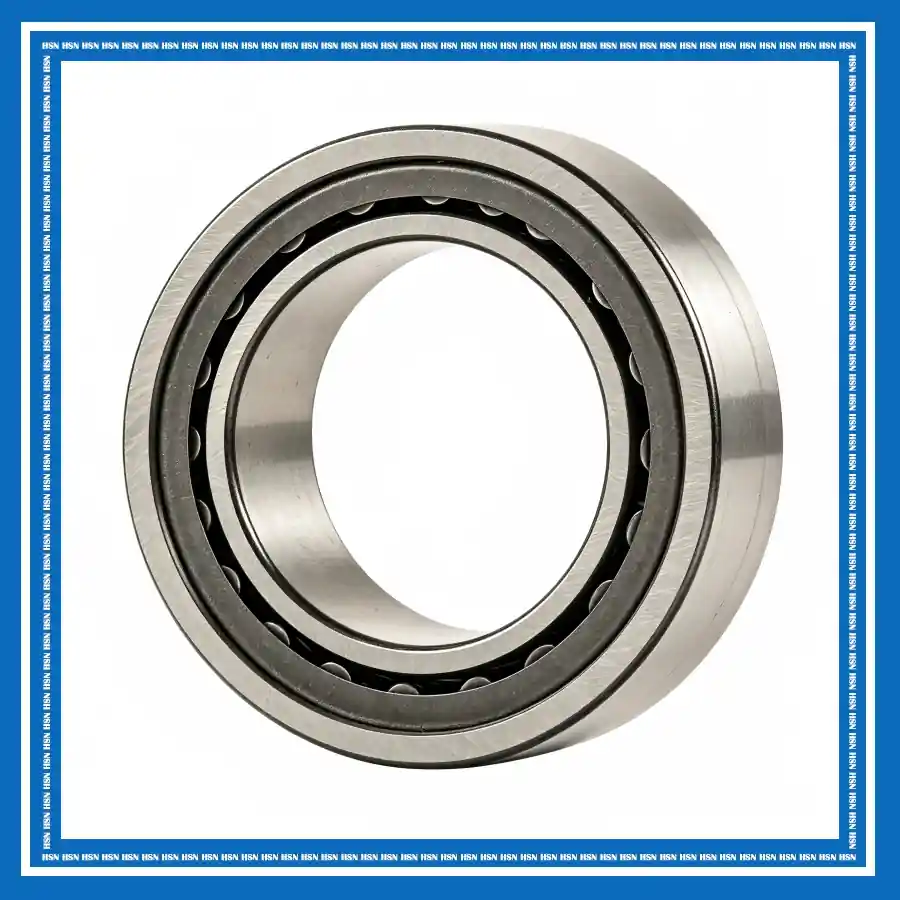

The NAO17×30×13-XL FAG machined needle roller bearing consists of a ribless machined outer ring, an inner ring, needle rollers, and a cage. Its single-row NAO design has an inner ring and no ribs, allowing the bearing components to be mounted separately. The inner ring provides a precision raceway for the needle rollers, while the compact design delivers high radial load capacity and rigidity within a small radial cross-section. In addition, X-life uses optimized raceway surfaces to increase load carrying capacity and extend rating life.

The NAO17×30×13-XL bearing is suitable for automotive, industrial transmissions, agricultural machinery, construction machinery, material handling, and general mechanical engineering. Its compact radial dimensions help save installation space, while the cage provides stable guidance for the needle rollers. Moreover, the combination of high radial load capacity, rigidity, low friction, and high-speed capability supports efficient operation in compact mechanical systems.
