NCF1852V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: NCF1852V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 260.000 mm 10.2362 in
Outer (D): 320.000 mm 12.5984 in
Width (B): 28.000 mm 1.1024 in
DUR/DOR (F/E): 307.000 mm 12.0866 in
Weight: 4.80 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C1) : 292 KN
Static Radial Load Rating (C0): 553 KN
Thermal Reference Speed – Oil: 580 RPM
Thermal Reference Speed – Grease: 480 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Cylindrical Roller Bearings Guide
Product Description

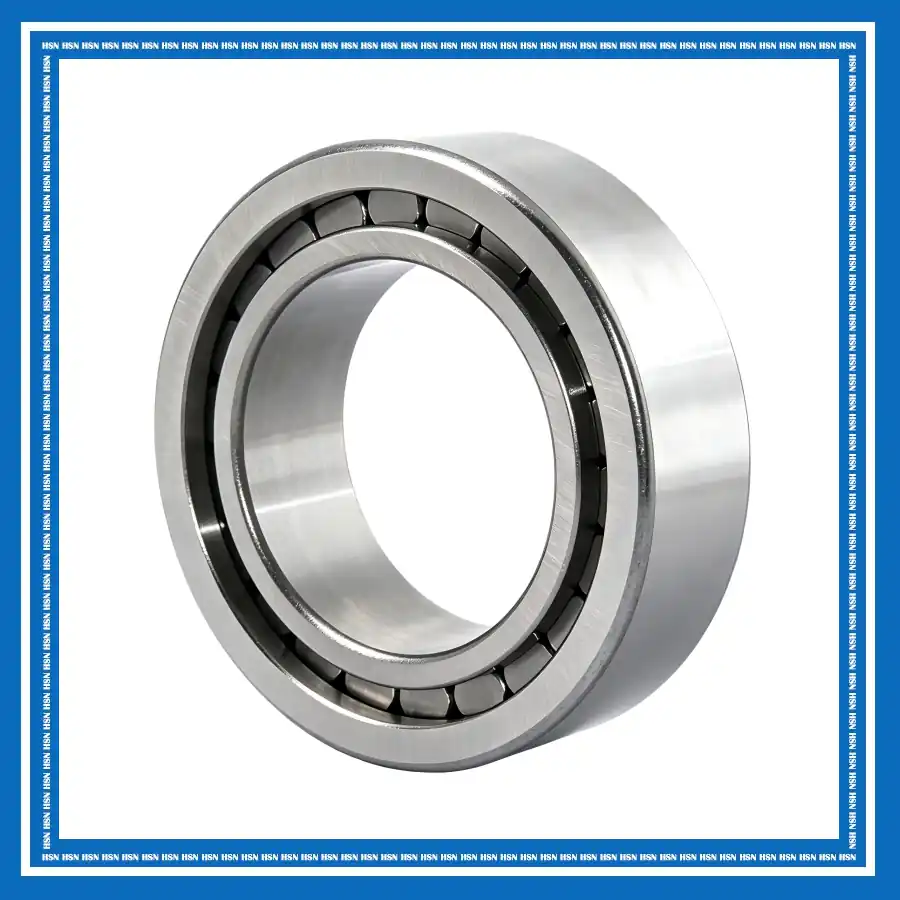

The NCF1852V Timken full-complement cylindrical roller bearing consists of an inner ring, an outer ring, and a full complement of cylindrical rollers without a cage. The increased number of rollers provides very high radial load capacity and excellent rigidity, making the bearing well suited for heavy-duty applications. The NCF design also allows a certain degree of axial displacement within the bearing while maintaining stable performance under high radial loads and continuous operating conditions.
The NCF1852V bearing is widely used in industrial gearboxes, rolling mills, mining equipment, heavy-duty drive systems, lifting equipment, and other industrial machinery. It is particularly suitable for applications requiring very high radial load capacity, high rigidity, and reliable performance under heavy and continuous operating conditions.
