NCF1876V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: NCF1876V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 380.000 mm 14.9606 in
Outer (D): 480.000 mm 18.8976 in
Width (B): 46.000 mm 1.8110 in
DUR/DOR (F/E): 457.300 mm 18.0039 in
Weight: 18.90 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C1) : 698 KN
Static Radial Load Rating (C0): 1350 KN
Thermal Reference Speed – Oil: 370 RPM
Thermal Reference Speed – Grease: 310 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Cylindrical Roller Bearings Guide
Product Description

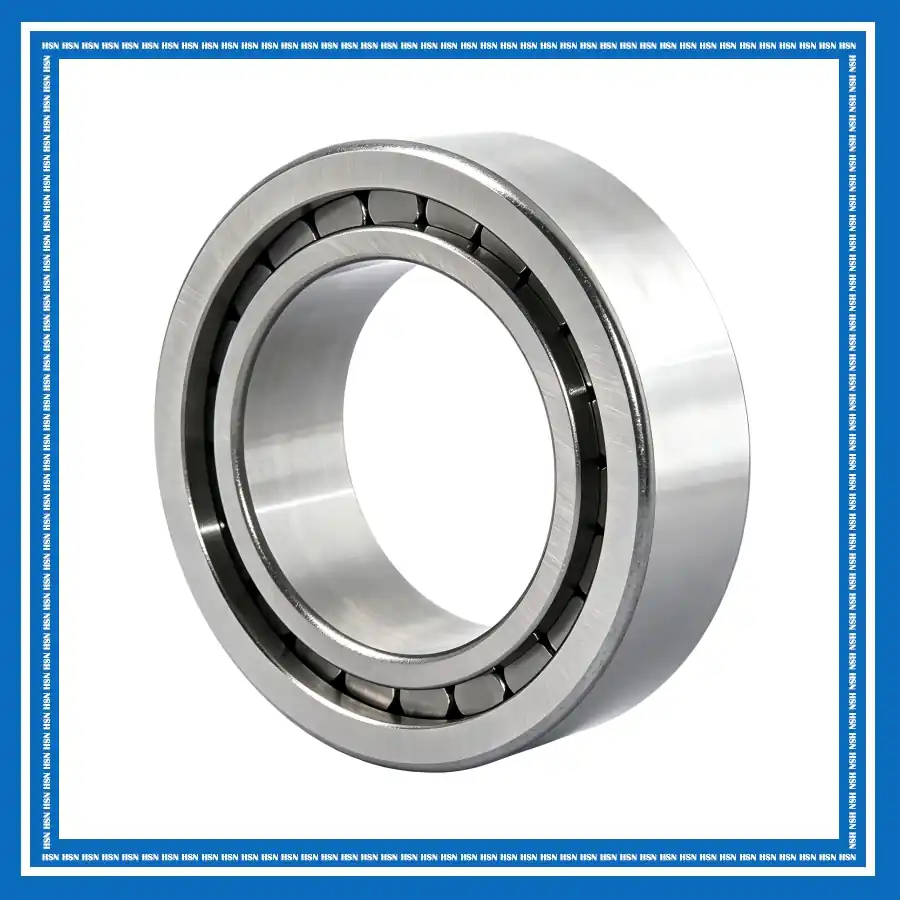

The NCF1876V Timken full-complement cylindrical roller bearing consists of an inner ring, an outer ring, and a full complement of cylindrical rollers without a cage. The increased number of rollers provides very high radial load capacity and excellent rigidity, making the bearing well suited for heavy-duty applications. The NCF design also allows a certain degree of axial displacement within the bearing while maintaining stable performance under high radial loads and continuous operating conditions.
The NCF1876V bearing is widely used in industrial gearboxes, rolling mills, mining equipment, heavy-duty drive systems, lifting equipment, and other industrial machinery. It is particularly suitable for applications requiring very high radial load capacity, high rigidity, and reliable performance under heavy and continuous operating conditions.
