NJ2236-E-XL-M1+HJ2236-E
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NJ2236-E-XL-M1+HJ2236-E
Category: Cylindrical Roller Bearings
1

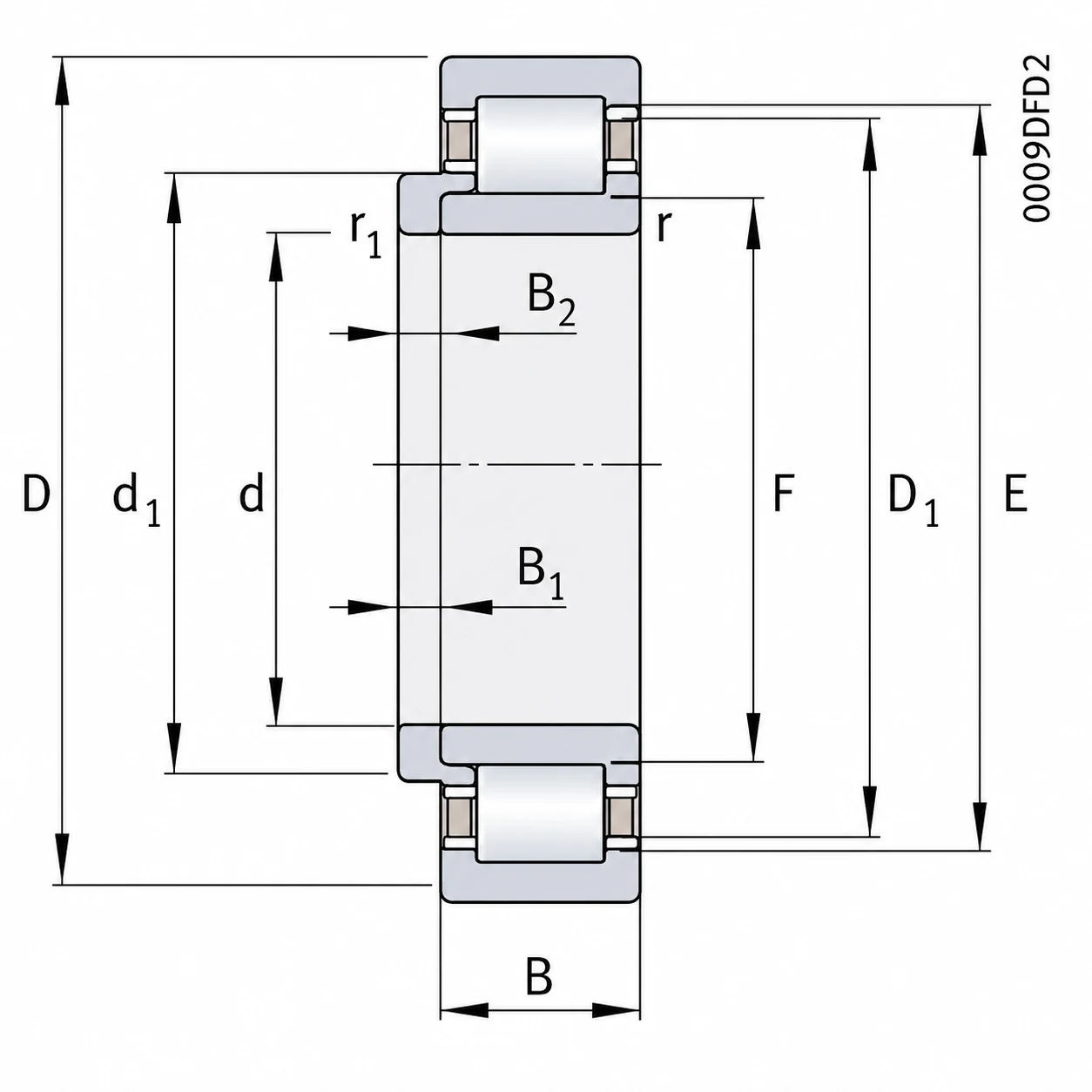

Weight and Dimensions
Bore (d): 180 mm
Outer (D): 320 mm
Width (B): 86 mm
Weight: 32.97 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 1180000 N
Basic Static Load Rating, Radial (C0r): 1490000 N
Fatigue Load Limit, Radial (Cur): 225000 N
Limiting Speed (nG): 3200 rpm
Reference Speed (nϑr): 1380 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NJ2236-E-XL-M1+HJ2236-E FAG cylindrical roller bearing features an NJ design with cylindrical rollers, a brass cage, and an L-section ring. The E design provides increased load-carrying capacity, while X-life technology improves operating performance and service life. The robust M1 brass cage supports stable operation under demanding loads, and the L-section ring enables the bearing to accommodate axial loads in both directions.
The NJ2236-E-XL-M1+HJ2236-E bearing is suitable for heavy industrial gearboxes, steel processing equipment, mining machinery, and large drive systems. Its high radial load capacity and bidirectional axial location provide reliable shaft support, making it a practical choice for heavy loads and continuous operation.
