NK8/16-TV-XL

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: NK8/16-TV-XL

Category: Needle Roller Bearings

1

Weight and Dimensions

Bore Diameter (Fw): 8 mm

Outside Diameter (D): 15 mm

Width (B): 16 mm

Weight: 12 g

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 5800 N

Basic Static Load Rating, Radial (C_0r): 5800 N

Fatigue Load Limit, Radial (C_ur): 970 N

Limiting Speed (n_G): 32500 r/min

Reference Speed (n_G): 36500 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Needle Roller Bearings Guide

Product Description

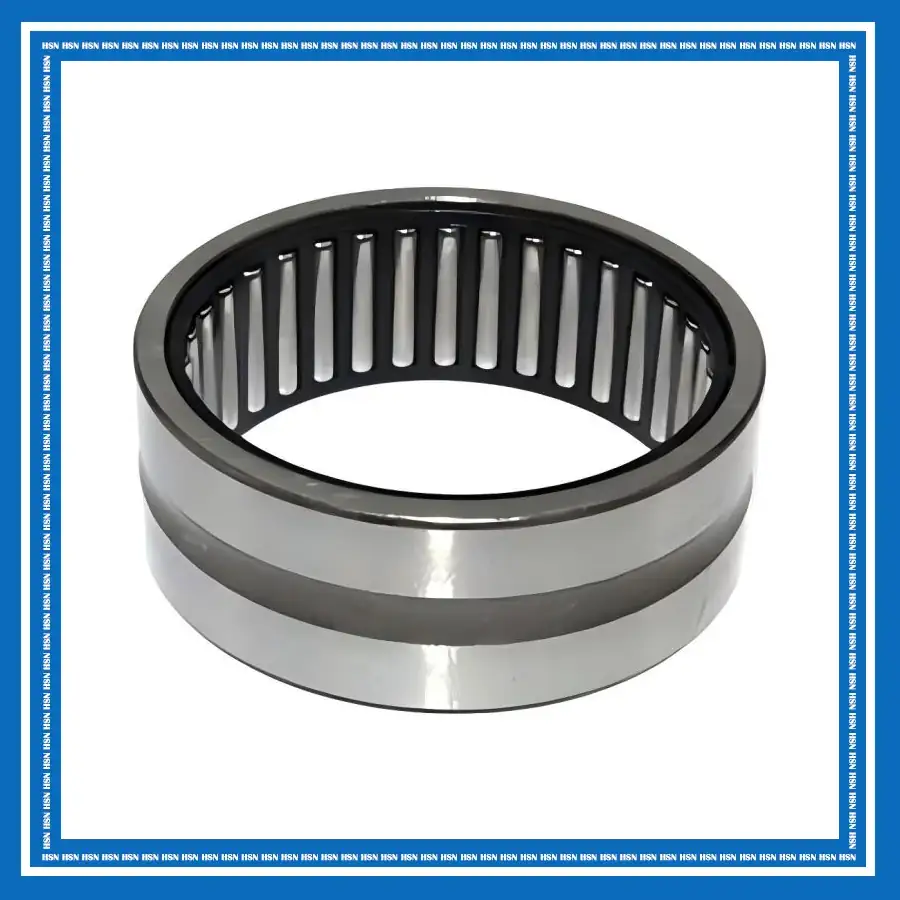

The NK8/16-TV-XL FAG machined needle roller bearing consists of a machined outer ring with two ribs, needle rollers, and a PA66 plastic cage, without an inner ring. The needle rollers can run directly on a suitably hardened and ground shaft raceway, allowing a very compact radial design with high radial load capacity and rigidity. The TV cage guides and separates the needle rollers, helping reduce friction and support higher speeds. In addition, X-life improves load ratings, operating performance, and service life.

The NK8/16-TV-XL bearing is suitable for automotive, industrial transmissions, precision machinery, small electric drives, machine tools, and general mechanical engineering. Its small radial cross-section is particularly useful where installation space and component weight are limited. Meanwhile, the combination of high radial load density, low friction, and high-speed capability supports efficient operation in compact mechanical systems.
