NNU49/800MAW33
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: NNU49/800MAW33
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 800 mm 31.4961 in
Outer (D): 1060 mm 41.7323 in
Width (B): 258 mm 10.1575 in
DUR/DOR (F/E): 880 mm 34.6457 in
Weight: 598.00 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C1) : 7070 KN
Static Radial Load Rating (C0): 17390 KN
Thermal Reference Speed – Oil: 190 RPM
Thermal Reference Speed – Grease: 180 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Cylindrical Roller Bearings Guide
Product Description

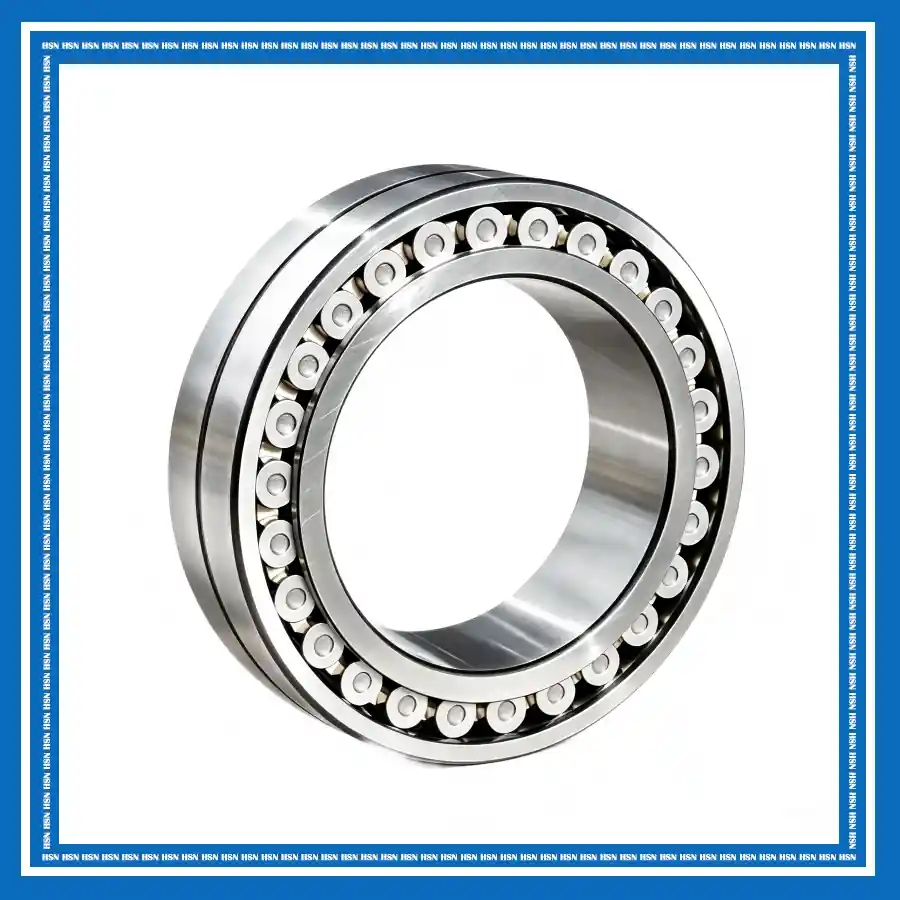

The NNU49/800MAW33 Timken full-complement cylindrical roller bearing consists of an inner ring, an outer ring, and a full complement of cylindrical rollers without a cage. The increased number of rollers provides very high radial load capacity and excellent rigidity, making the bearing well suited for heavy-duty applications. The NCF design also allows a certain degree of axial displacement within the bearing while maintaining stable performance under high radial loads and continuous operating conditions.
The NNU49/800MAW33 bearing is widely used in industrial gearboxes, rolling mills, mining equipment, heavy-duty drive systems, lifting equipment, and other industrial machinery. It is particularly suitable for applications requiring very high radial load capacity, high rigidity, and reliable performance under heavy and continuous operating conditions.
