QJ1012-MPA
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: QJ1012-MPA
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 60 mm
Outer (D): 95 mm
Width (B): 18 mm
Weight: 0.42 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 47500 N
Basic Static Load Rating, Radial (C0r): 52000 N
Fatigue Load Limit, Radial (Cur): 2600 N
Limiting Speed (nG): 13100 rpm
Reference Speed (nϑr): 5800 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

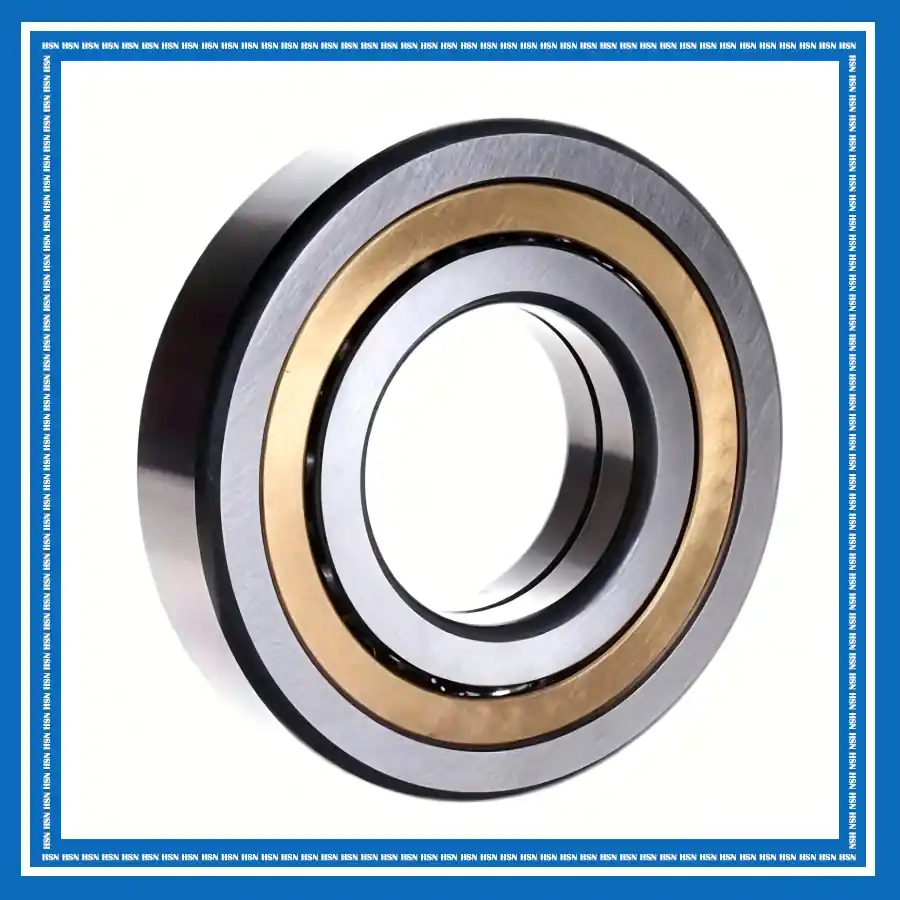

The QJ1012-MPA FAG four-point contact ball bearing consists of a solid outer ring, a split inner ring, balls, and an outer-ring-guided solid brass cage. The four-point contact design provides high axial load capacity in both directions while also supporting limited radial loads. The robust MPA brass cage provides reliable ball guidance and stable performance under continuous and demanding operating conditions.
The QJ1012-MPA bearing is widely used in industrial pumps, compressors, process equipment, and power transmission machinery. It is particularly suitable for applications requiring bidirectional axial load support, compact bearing arrangements, robust cage performance, and reliable continuous operation.
