RNAO65×85×30-XL
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: RNAO65×85×30-XL
Category: Needle Roller Bearings
1
Weight and Dimensions
Bore Diameter (Fw): 65 mm
Outside Diameter (D): 85 mm
Width (B): 30 mm
Weight: 464 g
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 64000 N
Basic Static Load Rating, Radial (C0r): 123000 N
Fatigue Load Limit, Radial (Cur): 21100 N
Limiting Speed (nG): 7100 r/min
Reference Speed (nG): 4550 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Needle Roller Bearings Guide
Product Description

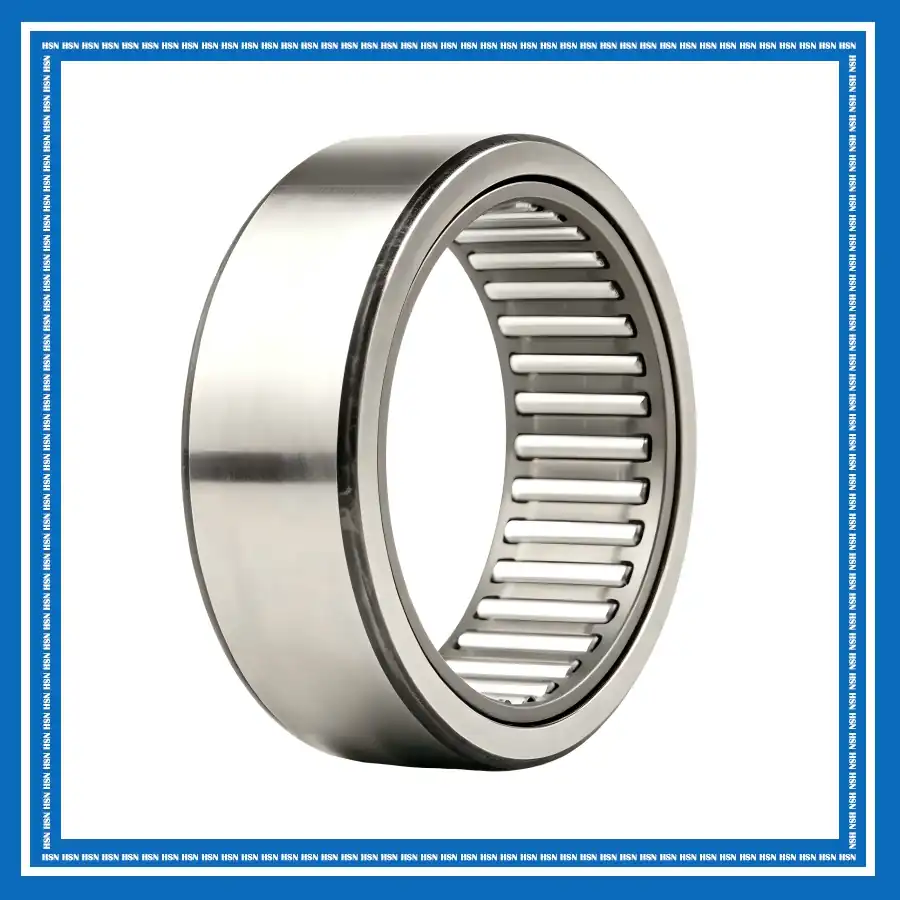

The RNAO65×85×30-XL FAG machined needle roller bearing consists of a ribless machined outer ring, needle rollers, and a cage, without an inner ring. The needle rollers run directly on a suitably hardened and ground shaft raceway, helping minimize radial installation space. Its single-row, ribless design allows the outer ring and needle roller and cage assembly to be mounted separately. Meanwhile, the compact construction provides high radial load capacity and rigidity. In addition, X-life improves load ratings, reduces friction and operating temperature, and extends service life.
The RNAO65×85×30-XL bearing is suitable for printing and packaging, industrial transmissions, machine tools, agricultural machinery, material handling, and general mechanical engineering. Its compact radial dimensions are particularly useful where installation space is limited and the shaft can serve as the raceway. Moreover, the combination of high radial load capacity, rigidity, low friction, and compact construction supports efficient and reliable operation in space-saving mechanical systems.
