T4CB110
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: T4CB110
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 110 mm
Outer (D): 160 mm
Width, Inner Ring (B): 25.5 mm
Width, Outer Ring (C): 19.5 mm
Width, Total (T): 27 mm
Weight: 1.69 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 148000 N
Basic Static Load Rating, Radial (C0r): 222000 N
Fatigue Load Limit, Radial (Cur): 24800 N
Limiting Speed (nG): 4300 rpm
Reference Speed (nϑr): 2600 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Tapered Roller Bearings Guide
Product Description

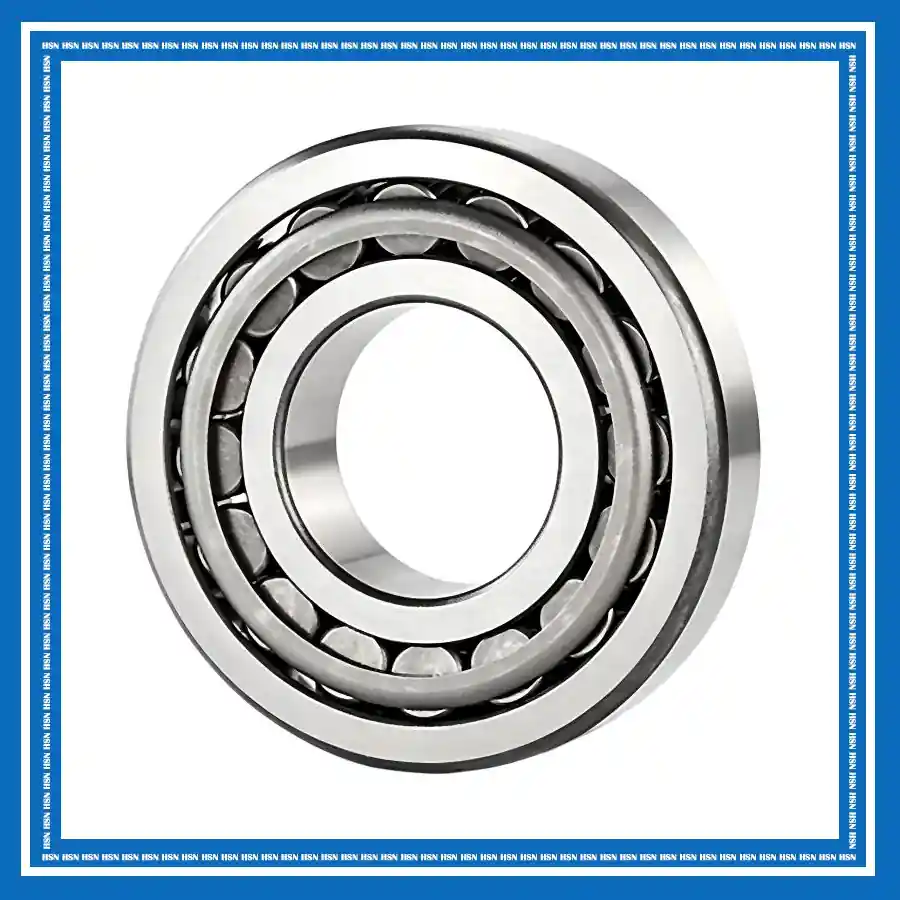

The T4CB110 FAG single row tapered roller bearing consists of an inner ring, outer ring, tapered rollers, and a cage. Its tapered roller and raceway geometry provides high radial load capacity, axial load capability in one direction, and high rigidity. The design also promotes effective load distribution and stable operation under combined radial and axial loads.
The T4CB110 bearing is suitable for construction machinery, agricultural machinery, material handling, industrial transmissions, and general manufacturing. Its combined load capacity and rigid construction provide dependable support under changing operating loads, making it suitable for a broad range of industrial applications.
