W1–1/4
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Andrews/ OEM
Bearing Number: W1–1/4
Category: Thrust Ball Bearings
1
Weight and Dimensions
Shaft (d): 31.750 mm 1.250 in
Outside Diameter (D): 53.190 mm 2.094 in
Width (T): 18.260 mm 0.719 in
Weight: 0.161 KG 0.355 lbs
Data from Andrews (medias)
Dynamic Capacity (Ca): 26500 KN 6000 lbf
Static Capacity (Coa): 50000 KN 11200 lbf
Limiting Speed (nG): 4700 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Andrews Thrust Ball Bearings Guide
Product Description

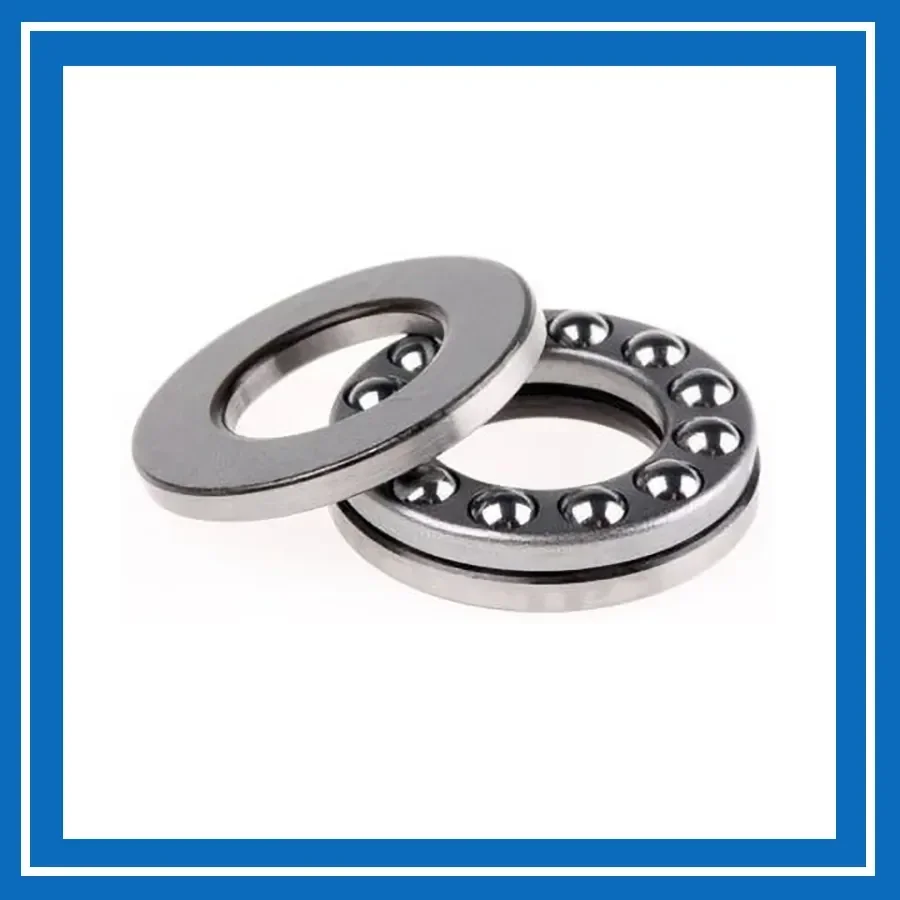

The Andrews W1–1/4 Thrust Ball Bearing features a medium cross-section, single-direction design consisting of two grooved thrust washers and a ball-and-cage assembly. Its grooved raceways support smooth rotation and stable axial load distribution, providing reliable thrust support in mechanical assemblies. Designed to accommodate axial loads in one direction, the bearing is suitable for industrial pumps, machine tools, and mechanical drive systems, with speed limits specified for oil lubrication. HSN provides replacement bearing solutions for U.S. equipment maintenance, aftermarket sourcing, and OEM applications, with dimensional verification and custom supply options available.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
