07100 / 07196(07000LA)
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 07100 / 07196(07000LA)
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 25.400 mm 1.0000 in
Outer (D): 50.005 mm 1.9687 in
Width (T): 14.206 mm 0.5593 in
Width (T1): 15.400 mm 0.6063 in
Width (B): 14.260 mm 0.5614 in
Weight: 0.11 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 29100 N
Dynamic Radial Load Rating – 90M Revs (C90) : 7550 N
Dynamic Axial Rating – 90M Revs (Ca90): 5190 N
Static Radial Load Rating (C0): 29600 N
e Factor: 0.40
K Factor: 1.45
Y Factor: 1.49
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product description

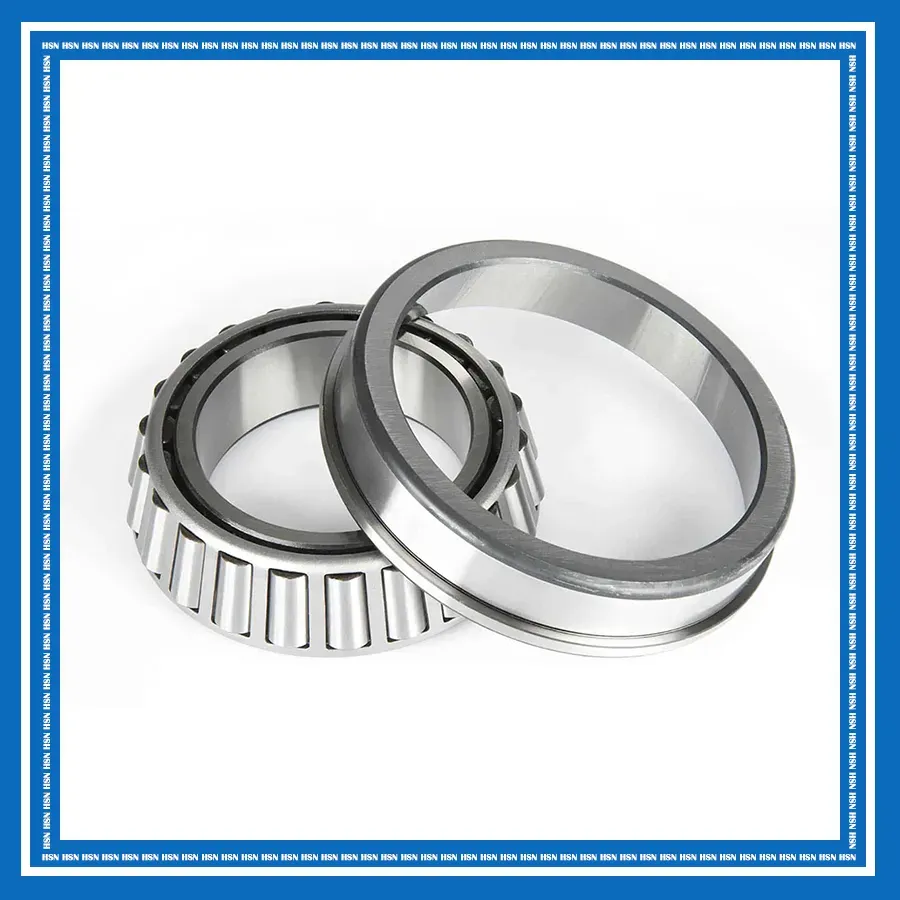

The 07100 / 07196(07000LA) Timken TSL tapered roller bearing features a single-row tapered roller bearing design with a DUO-FACE PLUS seal pressed onto the large rib of the inner ring. The dual-lip sealing system provides effective protection against lubricant leakage and external contamination, with one seal lip operating against the housing bore and the other sealing against the hardened and ground surface of the outer-ring front face. This integrated sealing design simplifies installation and provides reliable performance for grease-lubricated applications operating at moderate speeds.
The 7100 / 7196(07000LA) bearing is widely used in automotive systems, industrial equipment, agricultural machinery, and other applications where reliable sealing, load support, and reduced maintenance requirements are required.
