22220 EJ
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 22220 EJ
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 100 mm 3.937 in
Outer (D): 180 mm 7.0866 in
Width (B): 46 mm 1.811 in
Weight: 5 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C) : 435 KN
Static Radial Load Rating (C0): 502 KN
Thermal Reference Speed – Oil: 3800 RPM
Thermal Reference Speed – Grease: 3100 RPM
Limiting Speed: 4990 RPM
e Factor: 0.24
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Bearings Guide
Product Description

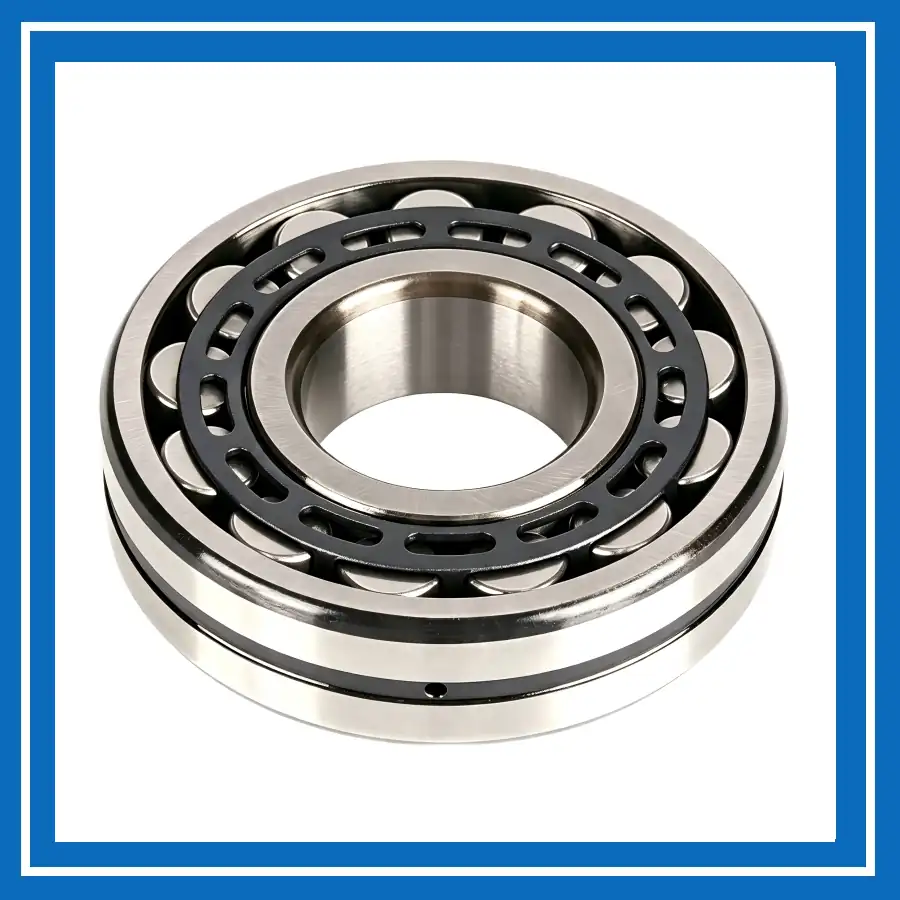

The 22220 EJ Timken spherical roller bearing consists of an inner ring, an outer ring, two rows of spherical rollers, and stamped nitrided steel cages. This configuration provides high radial load capacity, bidirectional axial load support, and self-aligning capability to accommodate shaft deflection and misalignment. The high-performance stamped nitrided steel cages provide excellent wear resistance and reliable roller guidance, helping maintain stable operation under heavy loads, shock conditions, and demanding operating environments.
The 22220 EJ bearing is widely used in mining equipment, crushers, vibrating screens, conveyors, gear drives, paper machinery, fans, and other industrial equipment. It is particularly suitable for applications requiring high load capacity, misalignment accommodation, shock resistance, and reliable operation under continuous or severe working conditions.
