22230 EJ
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 22230 EJ
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 150 mm 5.9055 in
Outer (D): 270 mm 10.6299 in
Width (B): 73 mm 2.874 in
Weight: 17.5 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C) : 1000 KN
Static Radial Load Rating (C0): 1230 KN
Thermal Reference Speed – Oil: 2400 RPM
Thermal Reference Speed – Grease: 2000 RPM
Limiting Speed: 3250 RPM
e Factor: 0.25
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Bearings Guide
Product Description

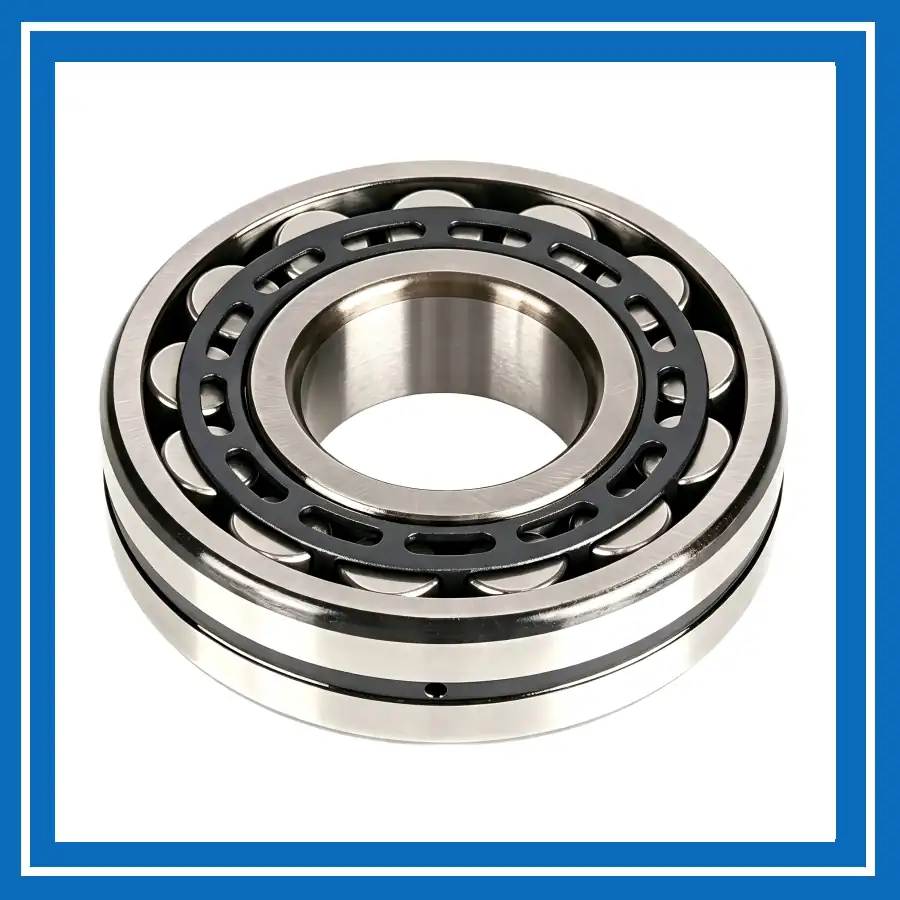

The 22230 EJ Timken spherical roller bearing consists of an inner ring, an outer ring, two rows of spherical rollers, and stamped nitrided steel cages. This configuration provides high radial load capacity, bidirectional axial load support, and self-aligning capability to accommodate shaft deflection and misalignment. The high-performance stamped nitrided steel cages provide excellent wear resistance and reliable roller guidance, helping maintain stable operation under heavy loads, shock conditions, and demanding operating environments.
The 22230 EJ bearing is widely used in mining equipment, crushers, vibrating screens, conveyors, gear drives, paper machinery, fans, and other industrial equipment. It is particularly suitable for applications requiring high load capacity, misalignment accommodation, shock resistance, and reliable operation under continuous or severe working conditions.
