23168 EMB

Specifications

Availability: 100 PCS

Brand: HSN/ TIMKEN/ OEM

Bearing Number: 23168 EMB

Category: Spherical Roller Bearings

1

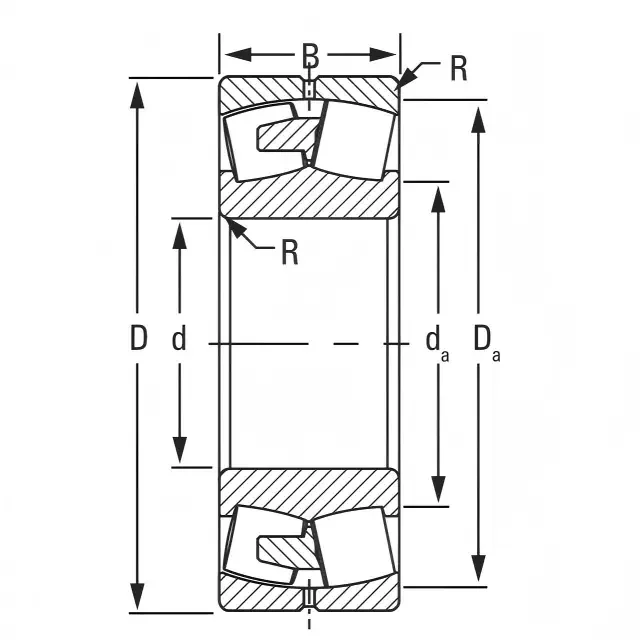

Weight and Dimensions

Bore (d): 340 mm 13.3858 in

Outer (D): 580 mm 22.8346 in

Width (B): 190 mm 7.4803 in

Weight: 210.3 kg

Data from Timken (medias)

Dynamic Radial Load Rating (C) : 4500 KN

Static Radial Load Rating (C0): 6850 KN

Thermal Reference Speed – Oil: 630 RPM

Thermal Reference Speed – Grease: 570 RPM

Limiting Speed: 940 RPM

e Factor: 0.3

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

Timken Spherical Roller Bearings Guide

Product Description

The 23168 EMB Timken spherical roller bearing consists of an inner ring, an outer ring, two rows of spherical rollers, and a one-piece, inner-ring-piloted, machined-brass cage. This configuration provides high radial load capacity, bidirectional axial load support, and self-aligning capability to accommodate shaft deflection and misalignment. The high-performance machined-brass cage guided by the inner ring provides excellent strength, wear resistance, and reliable roller control, helping maintain stable operation under heavy loads, shock conditions, and demanding operating environments.

The 23168 EMB bearing is widely used in mining equipment, crushers, conveyors, gear drives, rolling mills, industrial fans, and heavy-duty machinery. It is particularly suitable for applications requiring high load capacity, precise roller guidance, misalignment compensation, and reliable performance under continuous or severe operating conditions.
