292/600EM
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 292/600EM
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 600 mm 23.6220 in
Outer (D): 800 mm 31.4961 in
Width (B): 122 mm 4.8031 in
Cone Outside Diameter (d1): 750 mm 29.5276 in
Cup Bore (D1): 677 mm 26.6535 in
Weight: 152 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 4370 KN
Static Radial Load Rating (Ca0): 21920 KN
Reference Speed Rating: 400 RPM
Limiting Speed Rating: 680 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Thrust Bearings
Product Description

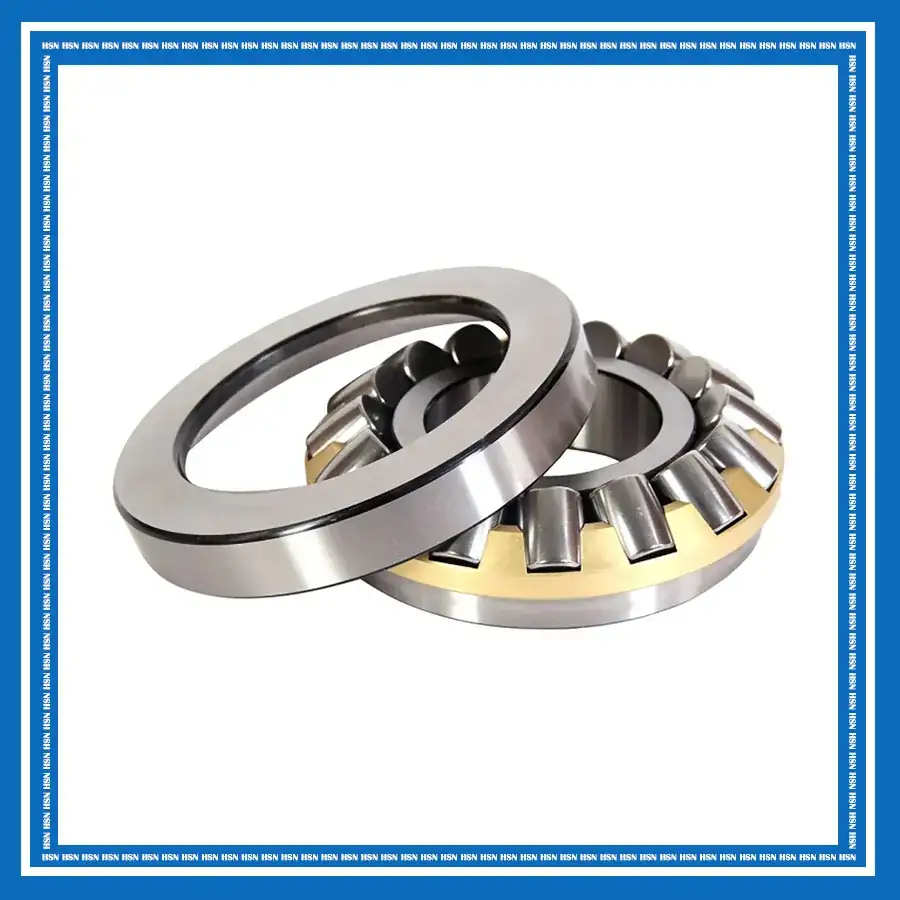

The 292/600EM Timken spherical roller thrust bearing consists of a shaft washer, a housing washer, asymmetrical spherical rollers, and a cage. The spherical raceway design provides high axial load capacity while also accommodating radial loads. Its self-aligning capability compensates for shaft deflection and misalignment, helping maintain reliable performance under heavy loads, shock loads, and demanding operating conditions.
The 292/600EM bearing is widely used in gear drives, pumps, crushers, extruders, rolling mills, mining equipment, and other heavy industrial machinery. It is particularly suitable for applications requiring high axial load capacity, misalignment compensation, shock resistance, and reliable operation under continuous or severe working conditions.
