A5030
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: A5030
Category: Cylindrical Roller Bearings
1

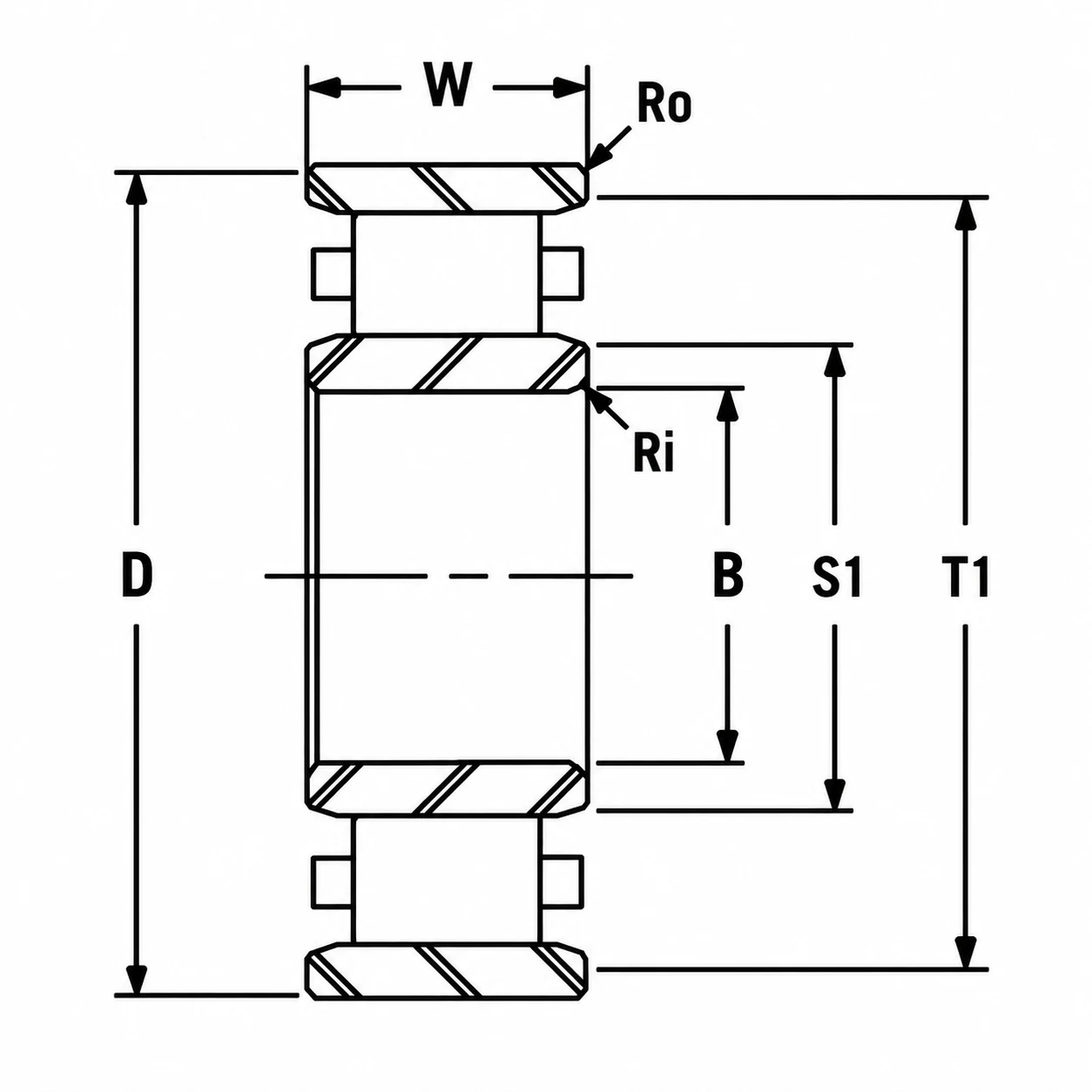

Weight and Dimensions
Bore (B): 150 mm 5.9055 in
Outer Diameter (D): 225 mm 8.8583 in
Width (W): 56 mm 2.2047 in
Inner Race O.D. A: 168.68 mm 6.641 in
Weight: 8 kg 17.5 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 414 KN 93000 lbs
Static Capacity (Co) : 596 KN 134000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing A5030 cylindrical roller bearing consists of a ribless inner ring, ribless outer ring, and cylindrical roller assembly that is separable from both rings. Its cylindrical roller design provides high radial load capacity and rigidity, while the ribless ring configuration allows axial displacement to accommodate shaft expansion during operation. The fully separable construction facilitates mounting, inspection, and maintenance. It is suitable for industrial gearboxes, electric motors, conveyors, material handling equipment, steel mill machinery, paper machinery, and other industrial equipment requiring reliable radial support and axial displacement capability.
