AD5220SM16
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: AD5220SM16
Category: Cylindrical Roller Bearings
1

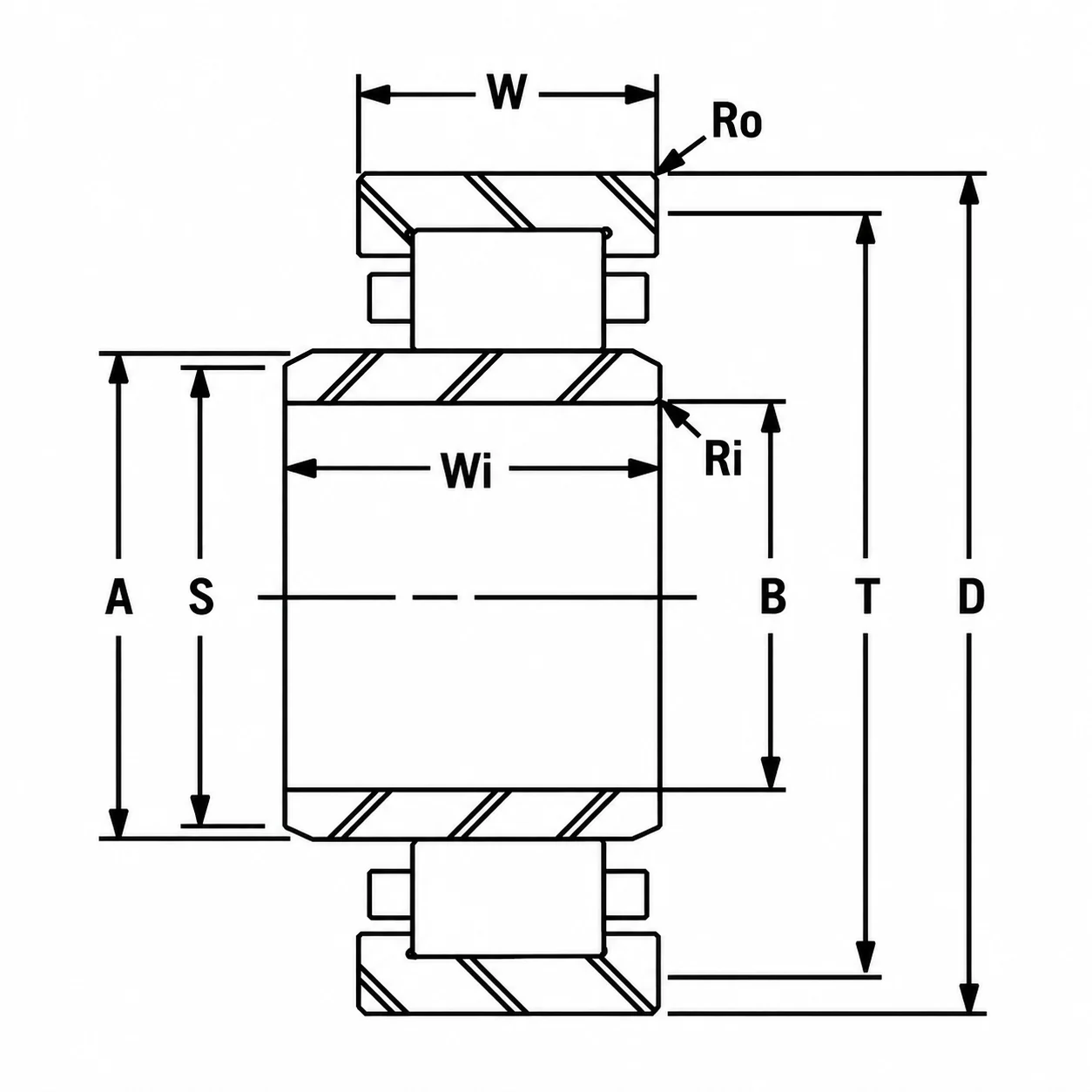

Weight and Dimensions
Bore (B): 101.62 mm 4.0008 in
Outer Diameter (D): 180 mm 7.0866 in
Outer Race (W): 60.325 mm 2.375 in
Inner Race (Wi): [Wimm] mm [Wiin] in
Inner Race O.D. A: 120.802 mm 4.756 in
Weight: 7.3 kg 16 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 356 KN 80000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing AD5220SM16 line shaft bearing consists of precision-machined bearing components and a roller assembly designed to provide reliable support for line shaft systems. Its robust construction provides high radial load capacity and rigidity, ensuring stable shaft guidance and smooth, reliable performance under continuous operation and heavy loads. It is suitable for line shaft drives, industrial transmission systems, conveyors, material handling equipment, steel mill machinery, paper machinery, and other industrial equipment requiring stable shaft support and reliable continuous operation.
