Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: ATMW226H
Reference Number: TMW226
Inner Race Number: ATMIR226H
Category: Cylindrical Roller Bearings
1

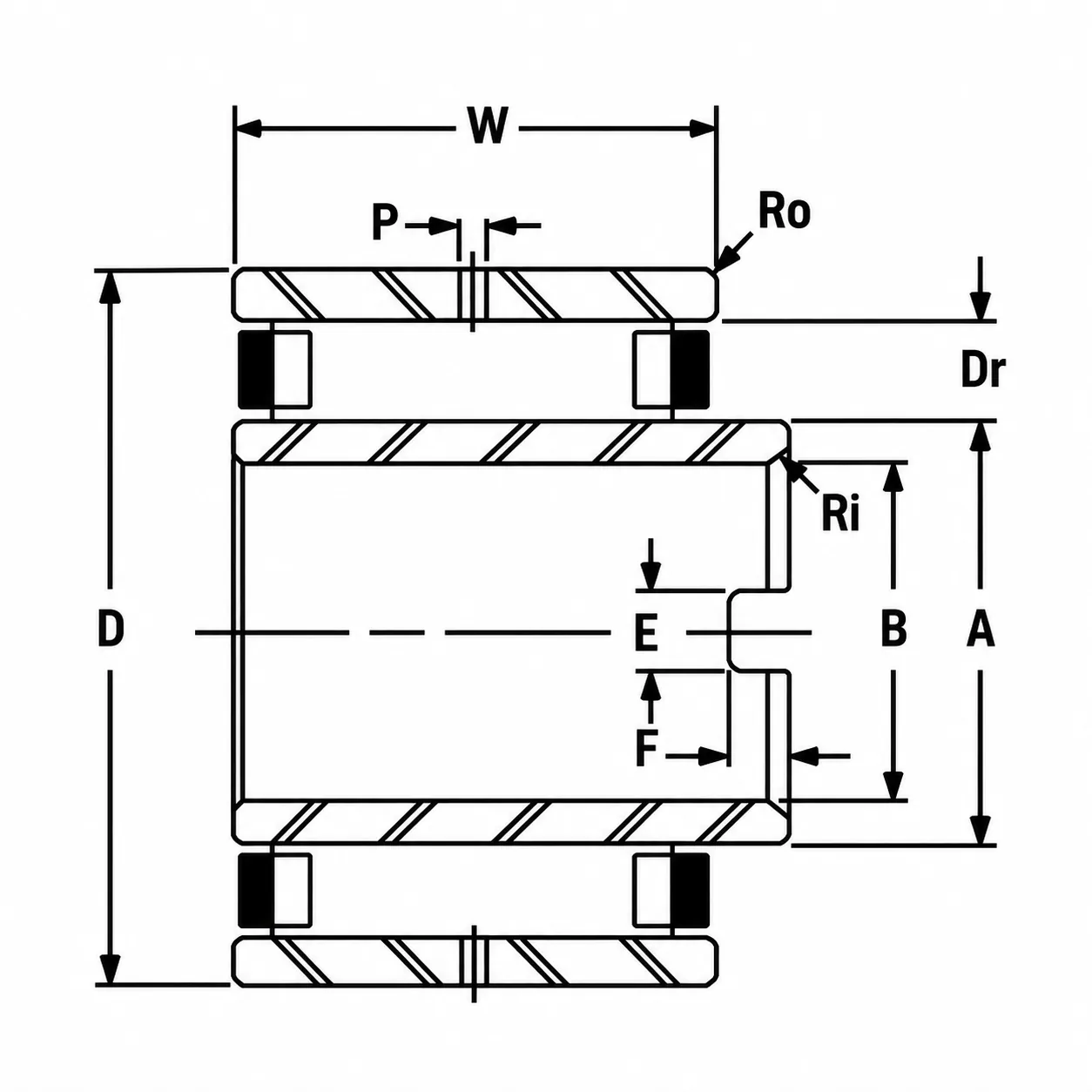

Weight and Dimensions
Bore (B): 127.000 mm 5.0000 in
Outer Diameter (D): 215.001 mm 8.4646 in
Outer Width (Wo): 98.425 mm 3.8750 in
Inner Width (Wi): 123.825 mm 4.8750 in
Inner Race O.D. A: 152.400 mm 6.0000 in
Weight: 18.00 kg 39.00 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 463 KN 104000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing ATMW226H journal roller bearing consists of a removable inner ring, outer ring, and cylindrical roller assembly in a separable construction. Its robust cylindrical roller design provides high radial load capacity and rigidity, ensuring stable shaft support under moderate to heavy radial loads. The bearing incorporates an oil hole for effective lubrication and notches for specific mounting requirements, while the separable construction facilitates installation, inspection, and maintenance.
The bearing ATMW226H is suitable for corrugating machinery, line shafts, table rolls, forging equipment, steel mill machinery, and other heavy-duty industrial equipment requiring high radial load capacity, reliable shaft support, and durable operation.
