ATW236H
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: ATW236H
Reference Number: TW99236
Inner Race Number: A30427H
Category: Cylindrical Roller Bearings
1

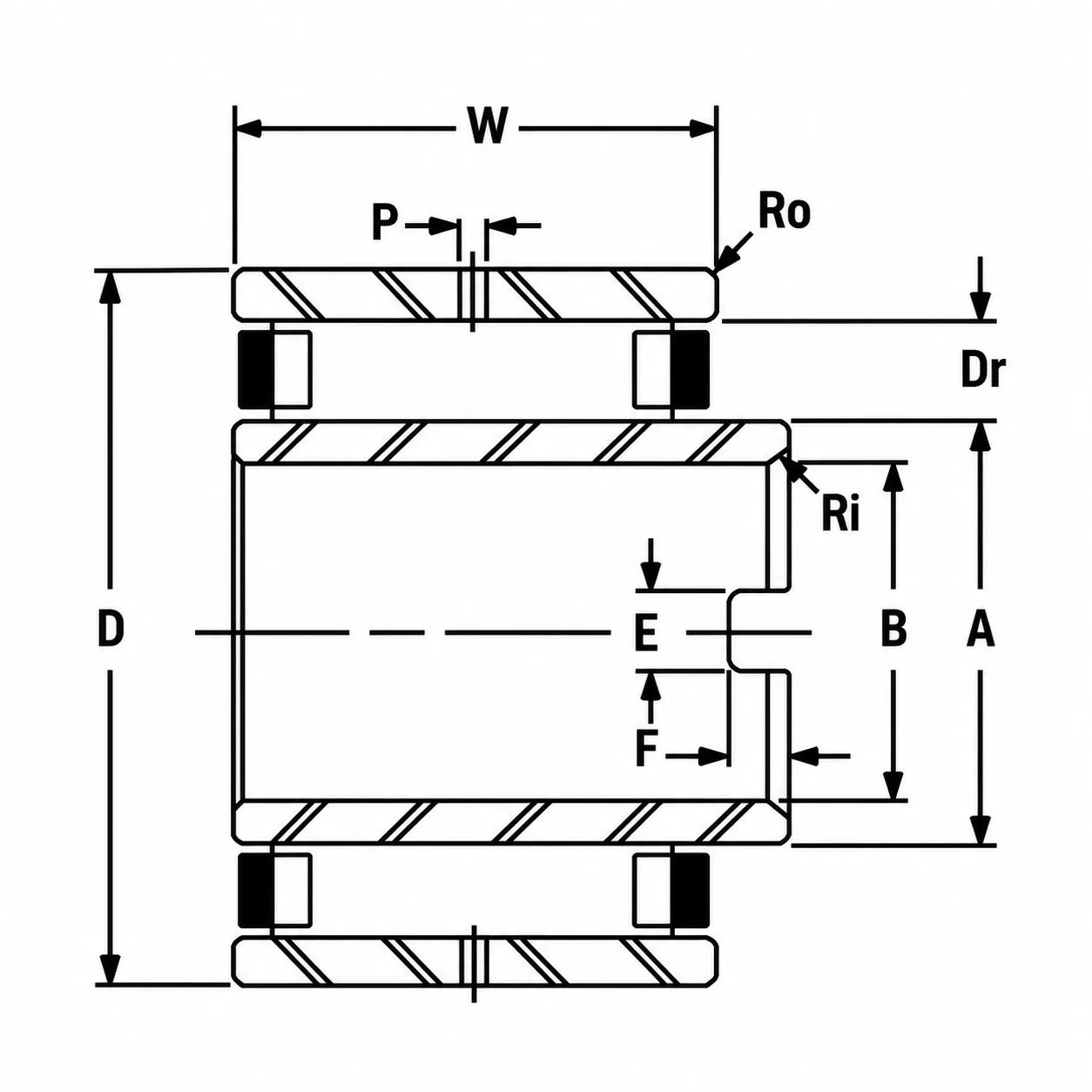

Weight and Dimensions
Bore (B): 176.213 mm 6.9375 in
Outer Diameter (D): 319.999 mm 12.5984 in
Outer Width (Wo): 149.225 mm 5.8750 in
Inner Width (Wi): 165.100 mm 6.5000 in
Inner Race O.D. A: 215.087 mm 8.4680 in
Weight: 64.00 kg 142.00 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1290 KN 290000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing ATW236H journal roller bearing consists of a removable inner ring, outer ring, and cylindrical roller assembly in a separable construction. Its robust cylindrical roller design provides high radial load capacity and rigidity, ensuring stable shaft support under moderate to heavy radial loads. The bearing incorporates an oil hole for effective lubrication and notches for specific mounting requirements, while the separable construction facilitates installation, inspection, and maintenance.
The bearing ATW236H is suitable for corrugating machinery, line shafts, table rolls, forging equipment, steel mill machinery, and other heavy-duty industrial equipment requiring high radial load capacity, reliable shaft support, and durable operation.
