HK3520

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: HK3520

Category: Needle Roller Bearings

1

Weight and Dimensions

Under Roller Diameter (Fw): 35 mm

Outside Diameter (D): 42 mm

Width, Outer Ring (B): 20 mm

Weight: 44 g

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 23800 N

Basic Static Load Rating, Radial (C_0r): 46000 N

Fatigue Load Limit, Radial (C_ur): 5900 N

Limiting Speed (n_G): 7500 r/min

Reference Speed (n_G): 5500 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Needle Roller Bearings Guide

Product Description

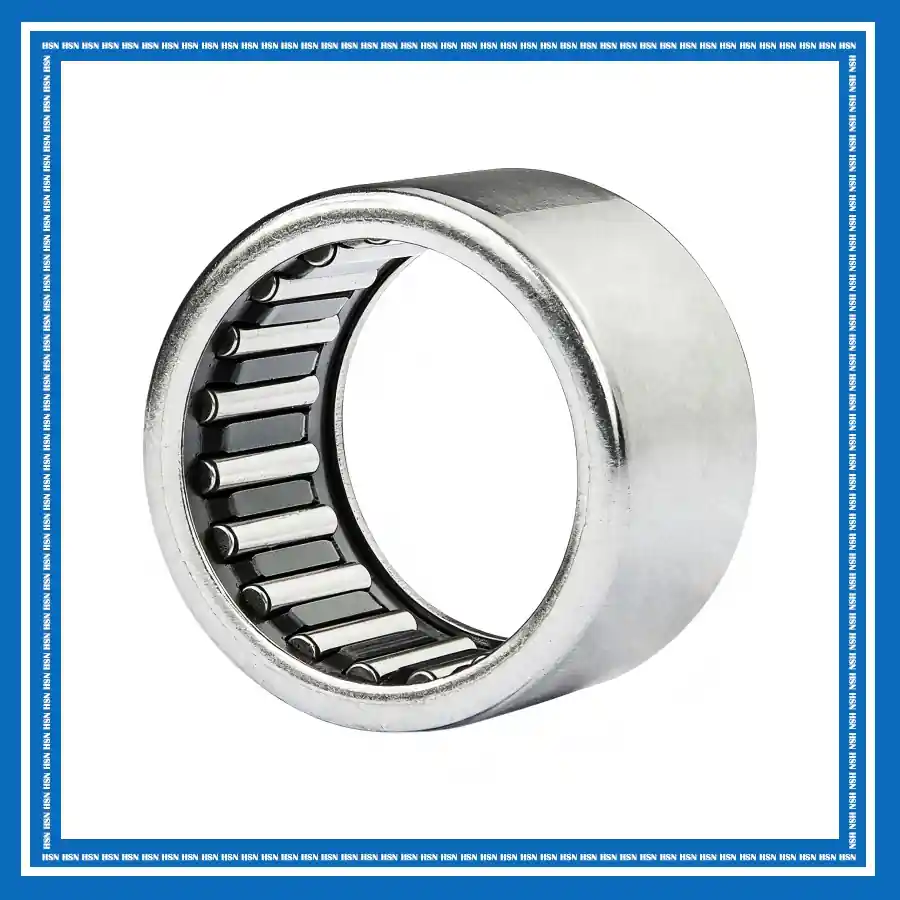

The HK3520 FAG drawn cup needle roller bearing consists of a thin-walled drawn outer cup, needle rollers, and a cage, without a separate inner ring. Its open-end HK design allows the shaft to pass through the bearing, while the shaft surface can serve directly as the inner raceway. Therefore, the bearing achieves a very small radial cross-section with high radial load capacity. The cage guides and separates the needle rollers, helping reduce friction and supporting good speed capability.
