HN1516

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: HN1516

Category: Needle Roller Bearings

1

Weight and Dimensions

Under Roller Diameter (Fw): 15 mm

Outside Diameter (D): 21 mm

Width, Outer Ring (B): 16 mm

Weight: 14 g

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 15400 N

Basic Static Load Rating, Radial (C_0r): 27500 N

Fatigue Load Limit, Radial (C_ur): 3600 N

Limiting Speed (n_G): 7100 r/min

Reference Speed (n_G): 9600 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Needle Roller Bearings Guide

Product Description

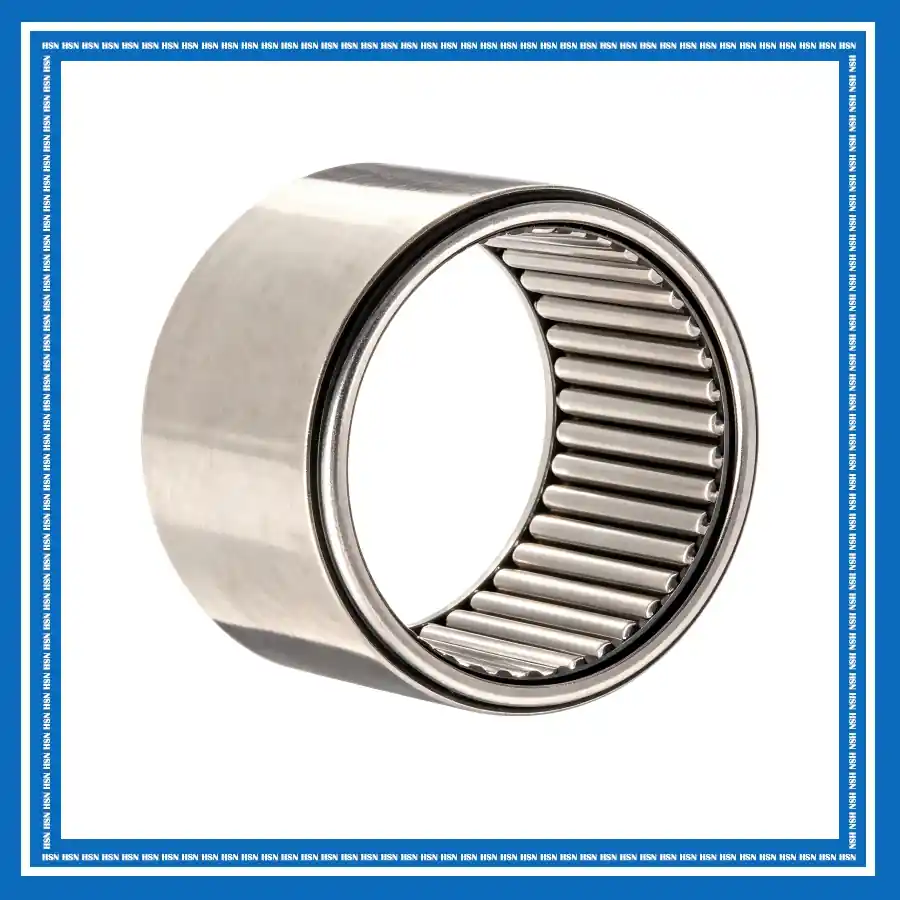

The HN1516 FAG drawn cup needle roller bearing consists of a thin-walled drawn outer cup and a full complement of needle rollers, without a cage or separate inner ring. The full complement design accommodates more needle rollers within a very small radial cross-section, providing very high radial load capacity and high rigidity. The shaft can serve directly as the inner raceway when its surface meets the required hardness and accuracy. Since the bearing has no cage, it is particularly suited to high-load and moderate-speed applications rather than high-speed operation.

The HN1516 bearing is suitable for automotive, agricultural machinery, construction machinery, industrial transmissions, material handling, textile machinery, and general mechanical engineering. Its combination of very high radial load capacity, rigidity, and compact dimensions is especially useful where radial installation space is limited. Meanwhile, the full complement construction performs well under heavy radial loads and oscillating operating conditions, making it suitable for compact, heavily loaded mechanical systems.
